Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
ADC0838CCWM
8-Bit, 8-Ch Serial I/O A/D Converter
Availability: Out of Stock
Package Type: SOIC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADC0838CCWM by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

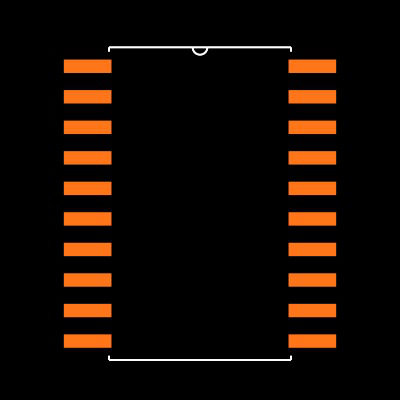

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADC0838CCWM
| Part Name | ADC0838CCWM |
| Manufacturer | Texas Instruments |
| RoHS | No |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Adcs | 8 |
| Dimensions | 12.8 x 7.47 x 2.34 (mm) |
| Mounting Type | Surface Mount |
| Resolution | 8-bit |
| Minimum Operating Temperature | 0 °C |
| Digital Interface Type | Serial (SPI/Microwire) |
| Input Signal Type | Differential, Pseudo Differential |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | SOIC W |
| Architecture | SAR |
| Input Type | Voltage |
| Sampling Rate | 31 (ksps) |
| Maximum Operating Temperature | 70 °C |
| Pin Count | 20 |
No issues have been reported for the ADC0838CCWM
If you experienced any issues with the symbol or footprint, please report it.
