ADE7880ACPZ
Polyphase Multifunction Energy Metering IC with Harmonic Monitoring
Availability: Out of Stock
Package Type: LFCSP -40
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADE7880ACPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

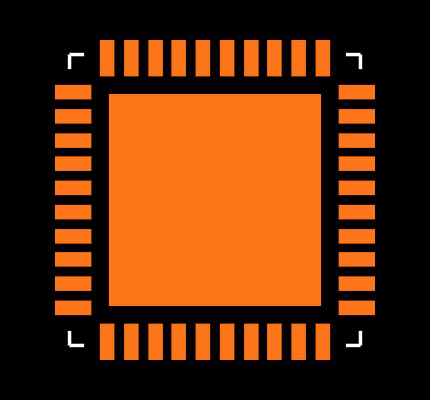

Footprint
No web preview
This Footprint is Available for

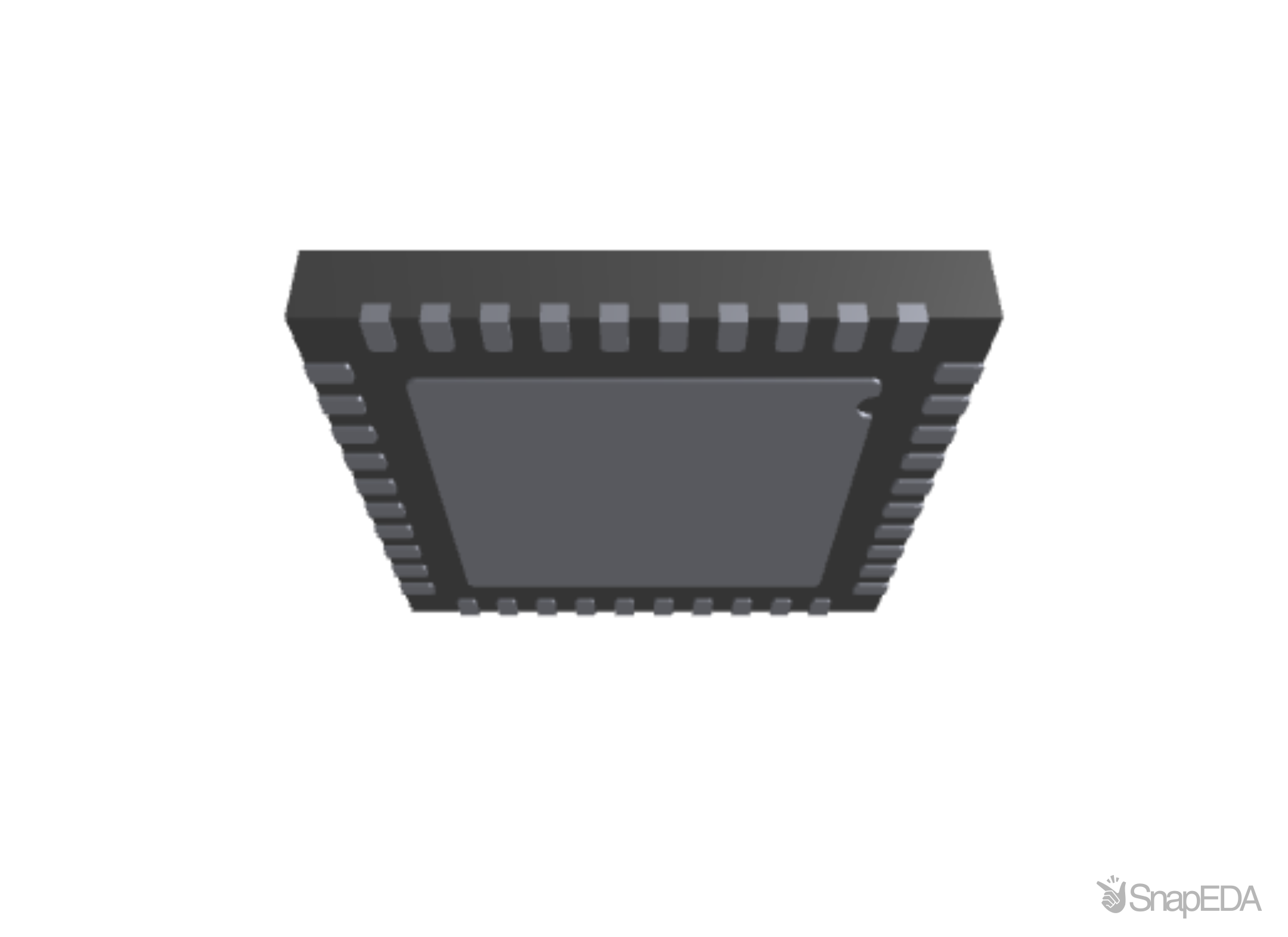

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADE7880ACPZ
| Part Name | ADE7880ACPZ |
| Manufacturer | Analog Devices |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Dimensions | 6.1 x 6.1 x 0.75 (mm) |
| Maximum Operating Supply Voltage (V) | 3.7 V |
| Minimum Operating Supply Voltage (V) | 2.4 V |
| Height | 0.75 (mm) |
| Width | 6.1 (mm) |
| Length | 6.1 (mm) |
| Package Type | LFCSP WQ |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 40 |
No issues have been reported for the ADE7880ACPZ
If you experienced any issues with the symbol or footprint, please report it.
