ADEL2020ANZ
Op Amp - Improved Second Source to the EL2020
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADEL2020ANZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

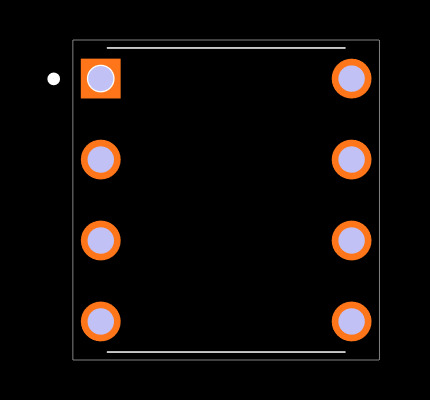

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADEL2020ANZ
| Part Name | ADEL2020ANZ |
| Manufacturer | Analog Devices |
| Product Category | Current Feedback Op Amps |
| Package | PLASTIC DIP |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/8/2004 4:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/adel2020.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 8 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±5 V, ±9 V |
| Typical Input Voltage Noise Density (V) | 2.9 (nV/√Hz) |
| Dimensions | 9.27 x 7.24 x 3.43 (mm) |
| Mounting Type | Through Hole |
| Typical Slew Rate | 500 (V/µs) |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Rail To Rail | No |
| Height | 3.43 (mm) |
| Width | 7.24 (mm) |
| Length | 9.27 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | General Purpose |
| Typical Voltage Gain (V) | 100 dB |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
