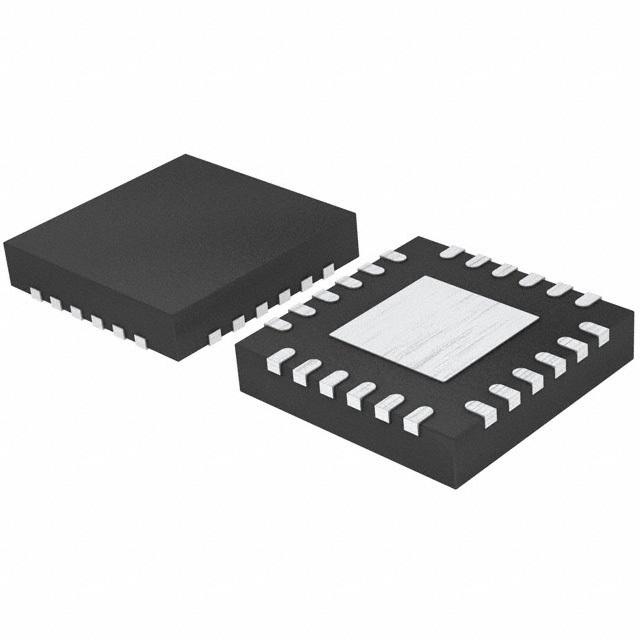

ADF4360-9BCPZ
Clock Generator PLL with Integrated VCO
Availability: Out of Stock
Package Type: LFCSP -24
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADF4360-9BCPZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

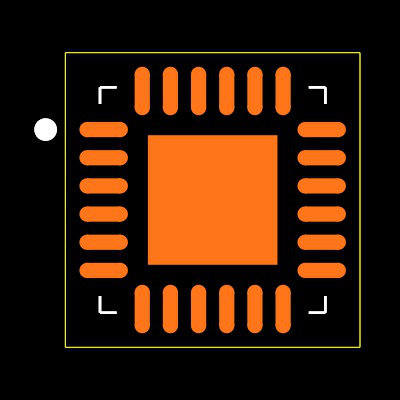

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADF4360-9BCPZ
| Part Name | ADF4360-9BCPZ |
| Manufacturer | Analog Devices |
| Product Category | Integer-N PLL |
| Package | LFCSP:LEADFRM CHIP SCALE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 2/20/2008 5:53:20 AM |
| Temperature Range | -40 to 85C |
| Product Link | https://www.analog.com/en/products/adf4360-9.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 24 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Dimensions | 4 x 4 x 0.83 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Maximum Output Frequency | 400 (MHz) |
| Minimum Output Frequency | 1.1 (MHz) |
| Minimum Operating Supply Voltage (V) | 3 V |
| Maximum Supply Current (A) | 5 mA |
| Height | 0.83 (mm) |
| Width | 4 (mm) |
| Length | 4 (mm) |
| Maximum Input Frequency | 250 (MHz) |
| Package Type | CP 24 2 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 24 |
No issues have been reported for the ADF4360-9BCPZ
