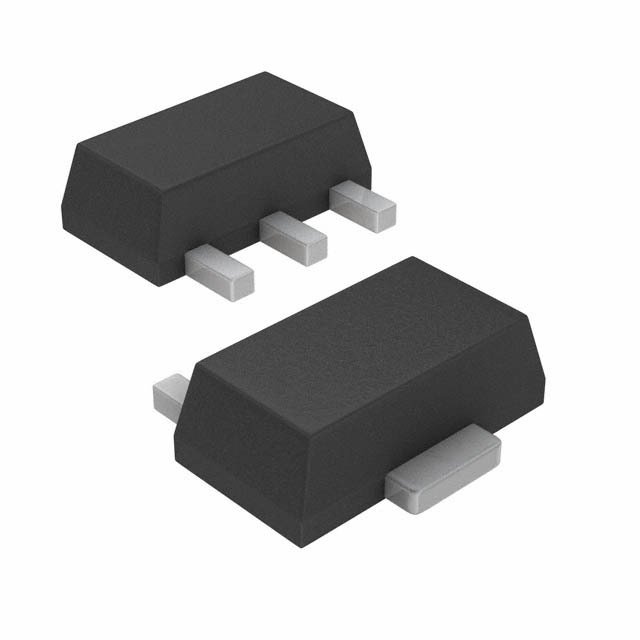

ADL5611ARKZ-R7
30 MHz to 6 GHz RF/IF Gain Block
Availability: Out of Stock
Package Type: SOT-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADL5611ARKZ-R7 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

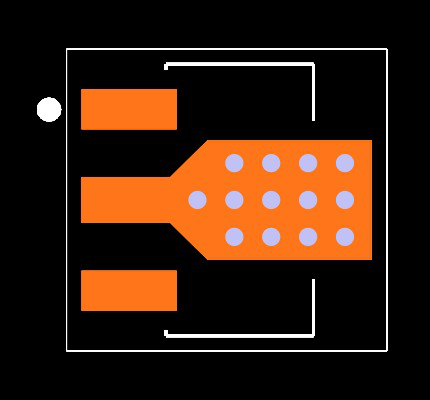

Footprint
No web preview
This Footprint is Available for

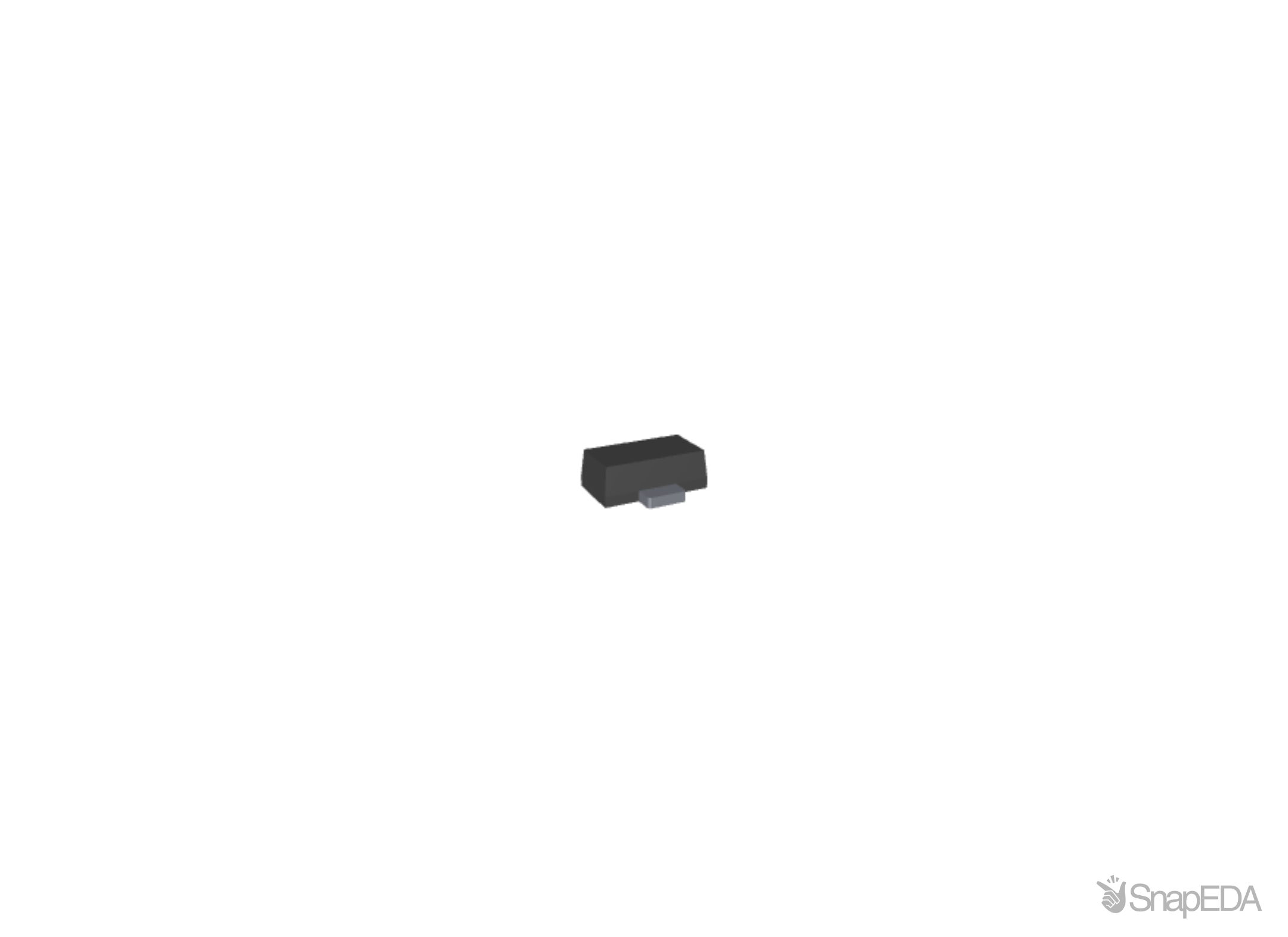

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADL5611ARKZ-R7
| Part Name | ADL5611ARKZ-R7 |
| Manufacturer | Analog Devices |
| Product Category | Gain Blocks |
| Package | SOT_89 |
| MOQ | 1000 |
| RoHS value | Yes |
| Part Launch Date | 3/10/2013 5:53:20 AM |
| Pins | 3 |
| Product Link | https://www.analog.com/en/products/adl5611.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 105C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 4.6 x 2.6 x 1.6 (mm) |
| Maximum Operating Supply Voltage (V) | 5.25 V |
| Package Type | SOT-89 |
| Typical Power Gain | 14.3 dB |
| Mounting Type | Surface Mount |
| Number Of Channels Per Chip | 1 |
| Maximum Operating Frequency | 6 GHz |
| Height | 1.6 (mm) |
| Width | 2.6 (mm) |
| Length | 4.6 (mm) |
| Typical Output Power | 12.8 (dBm) |
| Minimum Operating Temperature | -40 °C |
| Amplifier Type | Gain |
| Typical Noise Figure | 6 (dB) |
| Minimum Operating Supply Voltage (V) | 4.75 V |
| Maximum Operating Temperature | +105 °C |
| Pin Count | 3 |
No issues have been reported for the ADL5611ARKZ-R7
