ADM1485JNZ
5 V, High Speed (30 Mbps), Low Power, Half Duplex EIA RS-485 Transceiver
Availability: Out of Stock
Package Type: PDIP-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADM1485JNZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

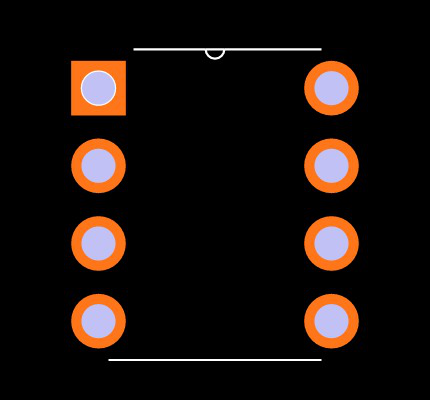

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADM1485JNZ
| Part Name | ADM1485JNZ |
| Manufacturer | Analog Devices |
| Product Category | RS-485 and RS-422 |
| Package | PLASTIC DIP |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 7/26/2004 4:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/adm1485.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | 0 to 70C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Dimensions | 9.27 x 7.24 x 3.43 (mm) |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Input Type | Differential |
| Ic Type | Line Transceiver IC |
| Number Of Transmitters | 1 |
| Pin Count | 8 |
No issues have been reported for the ADM1485JNZ
If you experienced any issues with the symbol or footprint, please report it.
