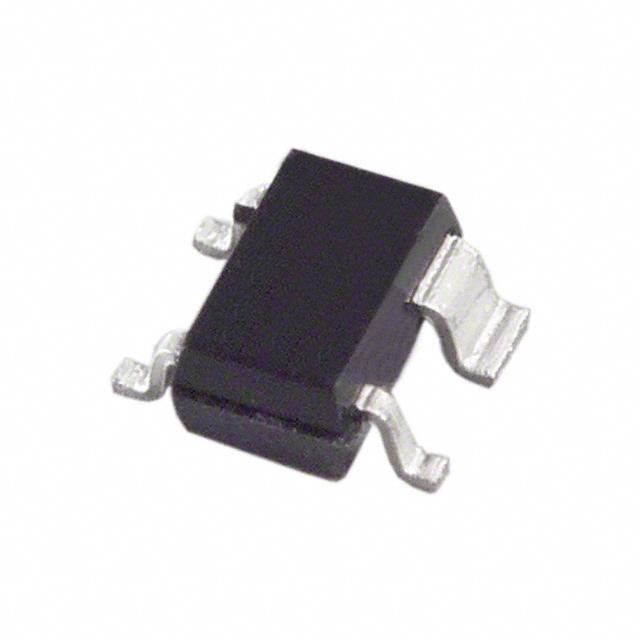

ADM6711RAKSZ-REEL
Microprocessor Supervisory Circuit in 4-Lead SC70
Availability: In Stock
Package Type: SC70-4
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADM6711RAKSZ-REEL by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADM6711RAKSZ-REEL
| Part Name | ADM6711RAKSZ-REEL |
| Manufacturer | Analog Devices |
| Product Category | Single-Supply Monitors |
| Package | SC-70 |
| MOQ | 0 |
| RoHS value | Yes |
| Part Launch Date | 1/2/2007 5:53:20 AM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/adm6711.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 4 |
| Product Lifecycle | Production |
| RoHS | Y |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Supervisors | 1 |
| Voltage Supervisor Type (V) | Microprocessor Supervisory Circuit |
| Maximum Monitored Voltage (V) | 5.5 (V) |
| Dimensions | 2.2 x 1.35 x 1 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Reset Threshold Voltage (V) | 2.55 (V) |
| Minimum Monitored Voltage (V) | 1 (V) |
| Maximum Reset Threshold Voltage (V) | 2.63 (V) |
| Minimum Operating Supply Voltage (V) | 1 V |
| Manual Reset | Yes |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 4 |
