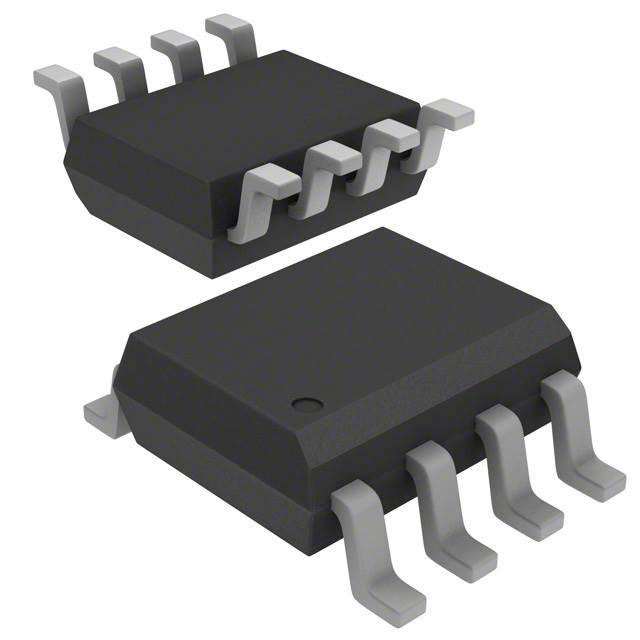

ADM692AARNZ
Microprocessor Supervisor with Backup Battery Switchover, Watchdog Feature, Power Fail Warning, 4.4V Threshold Voltage, Active Low Reset and 250mA Output Current
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADM692AARNZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

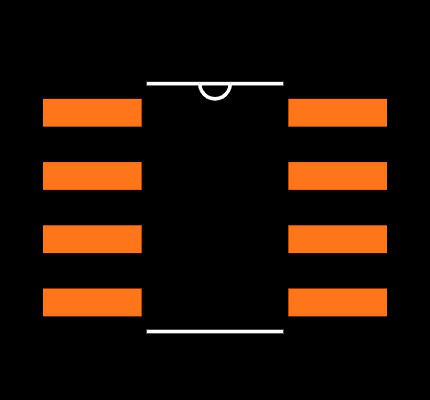

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADM692AARNZ
| Part Name | ADM692AARNZ |
| Manufacturer | Analog Devices |
| Product Category | Single-Supply Monitors |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 2/27/2006 5:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/adm692a.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 85C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Number Of Supervisors | 1 |
| Maximum Monitored Voltage (V) | 4.5 (V) |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Maximum Operating Supply Voltage (V) | 5.5 V |
| Minimum Operating Supply Voltage (V) | 1 V |
| Minimum Monitored Voltage (V) | 4.4 (V) |
| Watchdog Timer | Yes |
| Power Fail Detection | Yes |
| Output Driver | Active Low, Push-Pull |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 8 |
| Maximum Reset Active Time | 280 (ms) |
