ADR03ARZ
Ultracompact, Precision 2.5 V Voltage Reference
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADR03ARZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

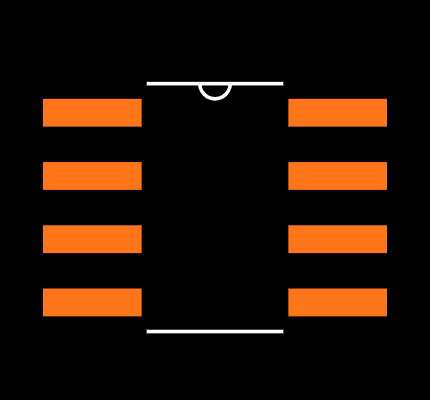

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADR03ARZ
| Part Name | ADR03ARZ |
| Manufacturer | Analog Devices |
| Product Category | Series Voltage References |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/6/2008 5:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/adr03.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 125C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Topology | Series |
| Load Regulation | 70 ppm/mA |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +125 °C |
| Height | 1.5 (mm) |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Initial Accuracy | ±0.2 % |
| Package Type | SOIC |
| Maximum Output Voltage (V) | 2.505 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage (V) | 2.495 V |
| Nominal Voltage (V) | 2.5 (V) |
| Reference Type | Fixed |
| Maximum Output Current (A) | 10 (mA) |
| Pin Count | 8 |
| Maximum Input Voltage (V) | 36 V |
| Line Regulation | 30 ppm/V |
No issues have been reported for the ADR03ARZ
If you experienced any issues with the symbol or footprint, please report it.
