ADS01008MR-LW100-R

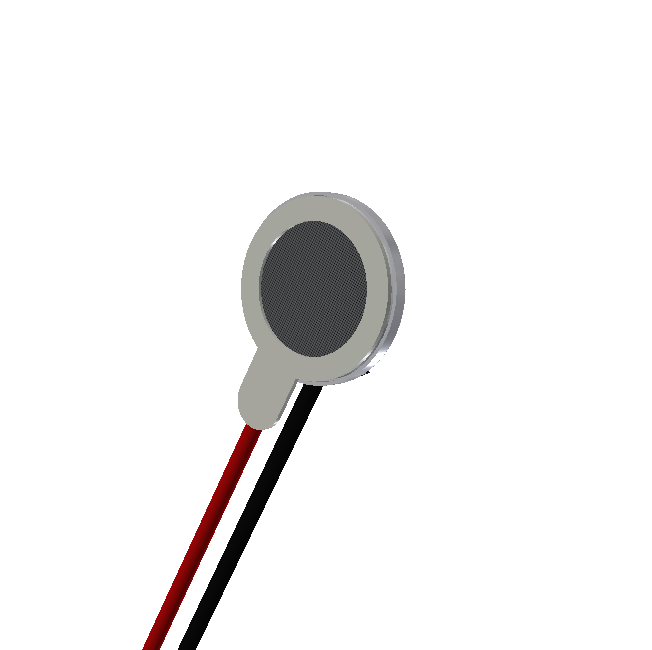

10MM SPEAKER 1500HZ 82DB 8OHM 0.5W PET LEAD WIRE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADS01008MR-LW100-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADS01008MR-LW100-R
| Part Name | ADS01008MR-LW100-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 82.0 |
| Freq min in Khz | 1.5 |
| Device Type | Speaker |
| Rated Input Power | 0.5 |
| Magnet Material | NdFeB |
| Lead Time | 130 |
| Resonant Frequency Khz | 1.5 |
| MULT | 100 |
| Product Link | https://www.puiaudio.com/products/ads01008mr-lw100-r |
| Status | Active |
| SPQ | 100 |
| Weight in grams | 0.6 |
| Tolerance percentage | 15.0 |
| REACH | Yes |
| SPU | TRAY |
| Temp. Grade | Standard |
| Additional Features | lead wire |
| Freq max in Khz | 6.0 |
| Country Code | CN |
| Diaphragm Material | PET Film |
| Tolerance - dB | 3 |
| Operating Temp. | -20 to 60 |
| RoHS | Yes |
| HTS Code | 8518.29.8000 |
| MOQ | 100 |
| Input Power Max | 0.7 |
| Dimmensions in mm. | 10 x 10 x 3.8 |
| Impedance in ohms | 8.0 |
| Shape | Round |
