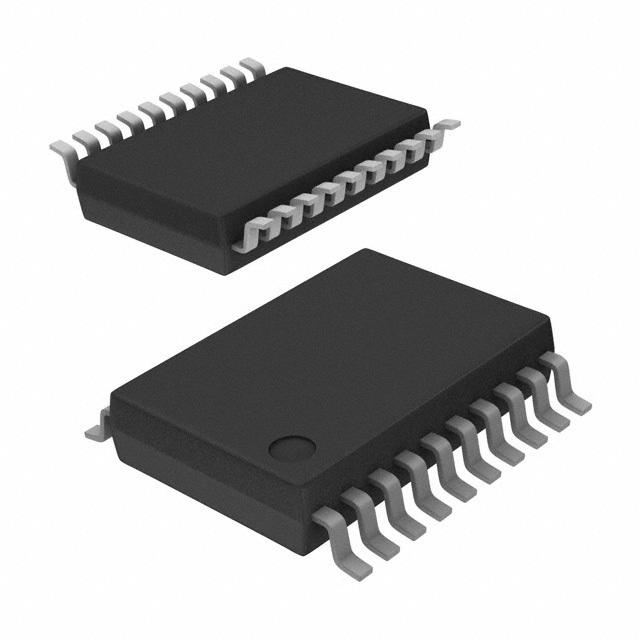

ADS1255IDBT
24-Bit, 30kSPS, Very-Low-Noise Delta-Sigma ADC
Availability: In Stock
Package Type: SSOP-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADS1255IDBT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

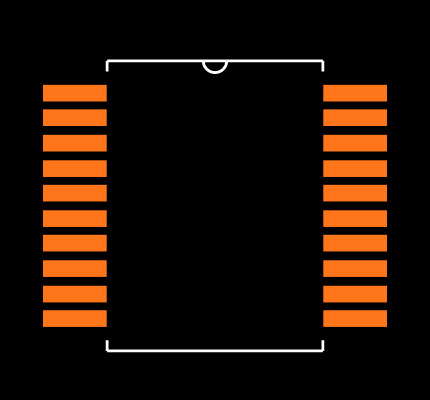

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADS1255IDBT
| Part Name | ADS1255IDBT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 2 |
| Integral Nonlinearity Error | ±0.001 (%FSR) |
| Dimensions | 7.2 x 5.3 x 1.95 (mm) |
| Mounting Type | Surface Mount |
| Resolution | 24-bit |
| Pin Count | 20 |
| Input Signal Type | Differential, Single Ended |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | SSOP |
| Architecture | Delta Sigma |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 30 (ksps) |
| Input Type | Voltage |
| Maximum Operating Temperature | 85 °C |
| Digital Interface Type | Serial (SPI) |
Inventory for the ADS1255IDBT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
674
|
|
Visit Site | |
|
★ Featured
|
1,183
|
|
Visit Site | |
|
★ Featured
|
7,560
|
63 x $4.77
|
Visit Site | |
| Arrow Europe |
1,000
|
250 x $11.37
|
Visit Site | |
| Texas Instruments |
66,476
|
|
Visit Site |
No issues have been reported for the ADS1255IDBT
