ADUM1201ARZ
Dual-Channel Digital Isolator (1/1 Channel Directionality)
Availability: In Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADUM1201ARZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

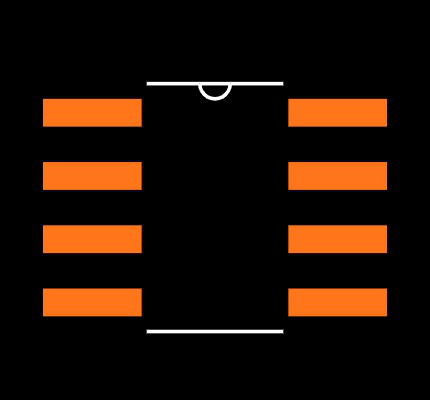

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADUM1201ARZ
| Part Name | ADUM1201ARZ |
| Manufacturer | Analog Devices |
| Product Category | Standard Digital Isolators |
| Package | SOIC 150 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/7/2008 5:53:20 AM |
| Pins | 8 |
| Product Link | https://www.analog.com/en/products/adum1201.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 105C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 5 (V) |
| Isolation Voltage (V) | 2500 V |
| Maximum Data Rate | 25 (Mbps) |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Operating Temperature | +105 (°C) |
| Depth | 1.5 (mm) |
| Width | 4 (mm) |
| Length | 5 (mm) |
| Number Of Channels | 2 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 8 |
| Rise Time | 3 (ns) |
| Maximum Input Current (A) | 10 μA |
