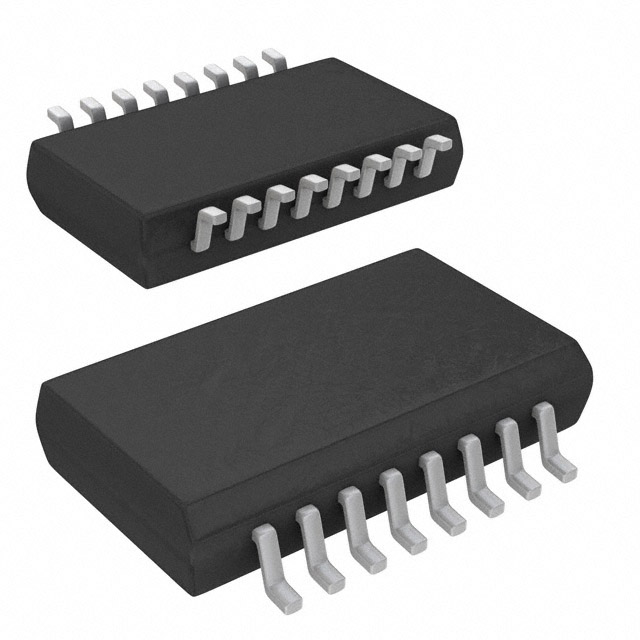

ADUM1402
General Purpose Digital Isolator 2500Vrms 4 Channel 90Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Availability: Out of Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADUM1402 by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

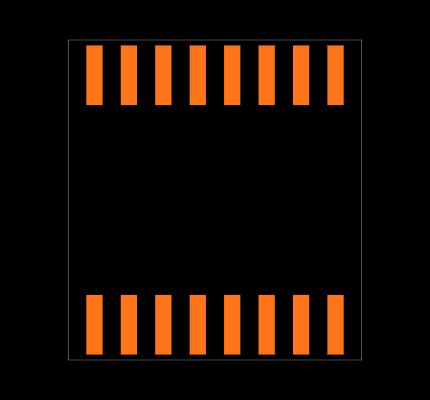

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADUM1402
| Part Name | ADUM1402 |
| Manufacturer | Analog Devices |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 5 (V) |
| Isolation Voltage (V) | 2500 V |
| Maximum Data Rate | 1 (Mbps) |
| Mounting Type | Surface Mount |
| Package Type | SOIC W |
| Maximum Operating Temperature | +105 (°C) |
| Depth | 2.35 (mm) |
| Width | 7.6 (mm) |
| Length | 10.5 (mm) |
| Number Of Channels | 4 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 16 |
| Rise Time | 3 (ns) |
| Maximum Input Current (A) | 10 μA |
No issues have been reported for the ADUM1402
