ADUM3300BRWZ
General Purpose Digital Isolator 2500Vrms 3 Channel 10Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Availability: Out of Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADUM3300BRWZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

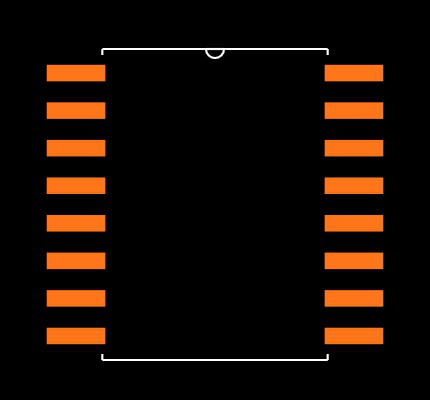

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADUM3300BRWZ
| Part Name | ADUM3300BRWZ |
| Manufacturer | Analog Devices |
| Product Category | Standard Digital Isolators |
| Package | SOIC 300 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 3/10/2008 4:53:20 AM |
| Pins | 16 |
| Product Link | https://www.analog.com/en/products/adum3300.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 105C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the ADUM3300BRWZ
If you experienced any issues with the symbol or footprint, please report it.
