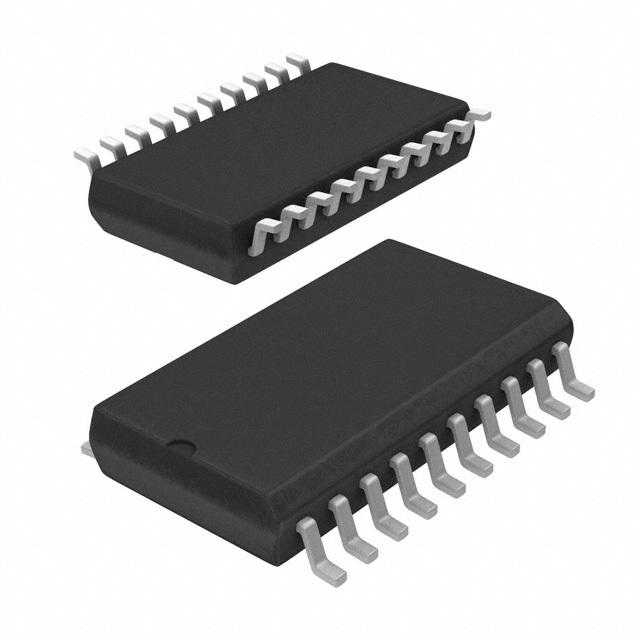

ADUM4150ARIZ
5kV, 6-Channel, SPIsolator Digital Isolator for SPI with Delay Clock
Availability: In Stock
Package Type: SOIC -20
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ADUM4150ARIZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for

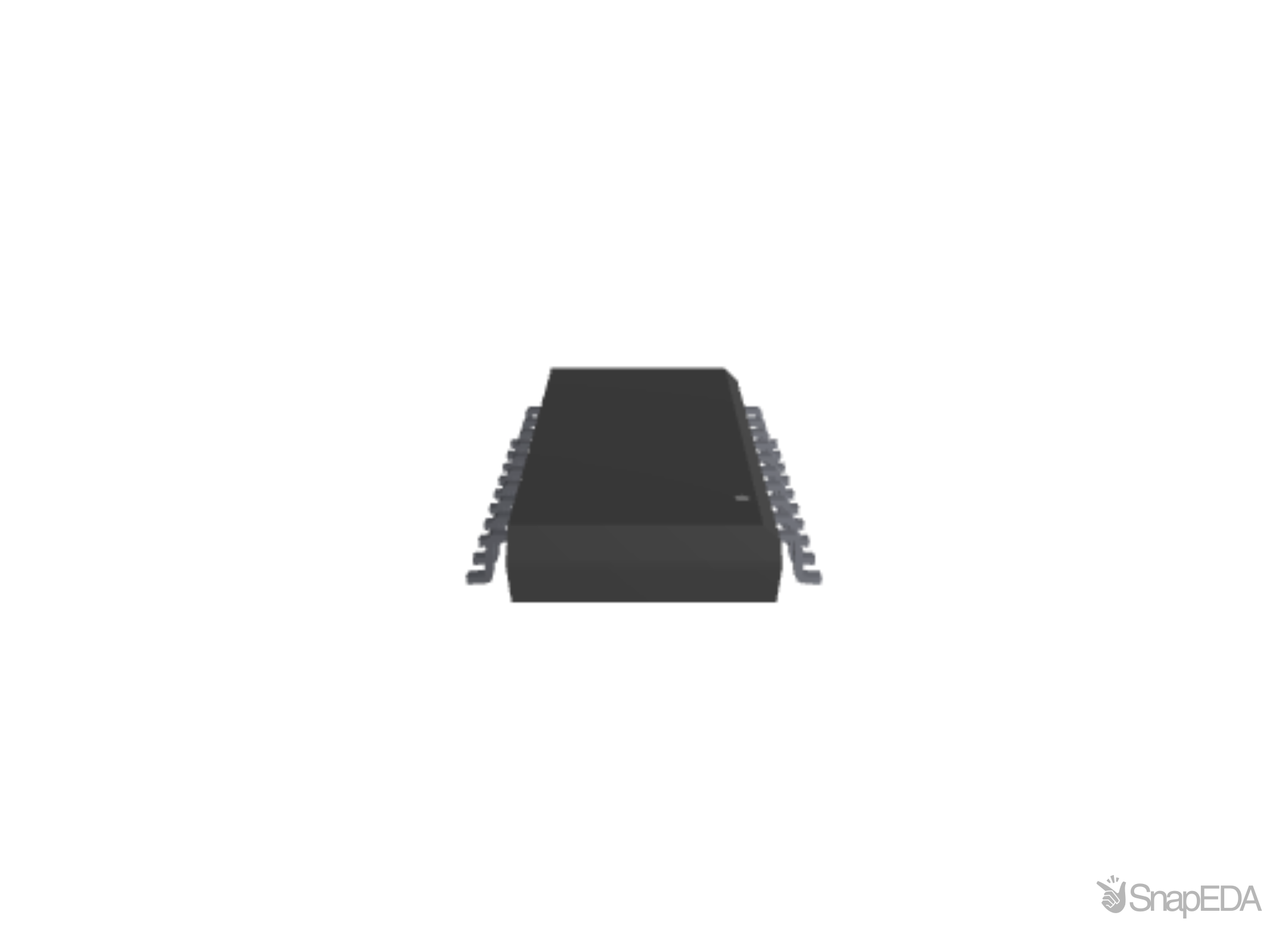

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ADUM4150ARIZ
| Part Name | ADUM4150ARIZ |
| Manufacturer | Analog Devices |
| Product Category | SPI Isolators |
| Package | SOIC INCREASED CREEPAGE |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 8/25/2014 4:53:20 AM |
| Temperature Range | -40 to 125C |
| Product Link | https://www.analog.com/en/products/adum4150.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Pins | 2 |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 5.5 (V) |
| Isolation Voltage (V) | 5 kVrms |
| Maximum Data Rate | 40 (Mbps) |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Maximum Operating Temperature | +125 (°C) |
| Depth | 2.44 (mm) |
| Width | 7.6 (mm) |
| Length | 15.4 (mm) |
| Number Of Channels | 6 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 20 |
| Rise Time | 2.5 (ns) |
| Maximum Input Current (A) | 9 mA |
Inventory for the ADUM4150ARIZ by Analog Devices from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
81
|
|
Visit Site | |
|
★ Featured
|
110
|
|
Visit Site | |
| Verical |
310
|
62 x $7.71
|
Visit Site |
No issues have been reported for the ADUM4150ARIZ
If you experienced any issues with the symbol or footprint, please report it.
