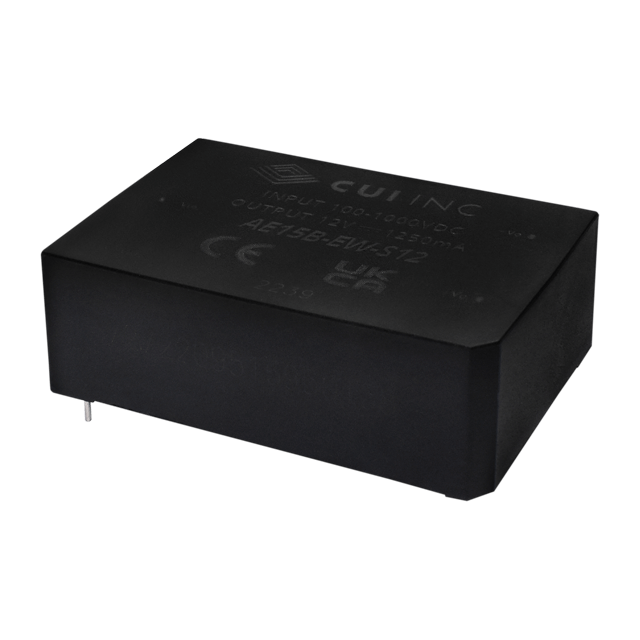

AE15B-EW-S12
SnapVerified
15 W, 10:1 Input Range, Single Regulated Output, PCB, 5600 Vdc Isolation, Dc-Dc Converter
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AE15B-EW-S12 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AE15B-EW-S12
| Part Name | AE15B-EW-S12 |
| Manufacturer | CUI Inc. |
| Output Voltage (Vdc) (V) | 12 |
| Safety Standards | 62109 |
| Safety Approvals | CE, UKCA |
| Operating Temp MAX (°C) | 70 |
| Input Ratio | 10:1 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/ae15b-ew-series |
| Power (W) | 15 |
| Input Voltage (Vdc) (V) | 100 ~ 1000 |
| Operating Temp MIN (°C) | -40 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Regulation | Yes |
| Protections | Over Current, Over Voltage, Short Circuit |
| Package Type | DIP |
| Life Cycle Status | End of Life |
| Dimensions LxWxH (mm) | 70 x 48 x 23.5 |
| Output Current (A) | 1.25 |
| Operating Temp MAX (With Derating, °C) | 50 |
| Series Power (W) | 15 |
| Isolation (Vdc) | 5600 |
| RoHS | RoHS Compliant By Exemption |
| Dimensions LxWxH (in) | 2.76 x 1.89 x 0.925 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
