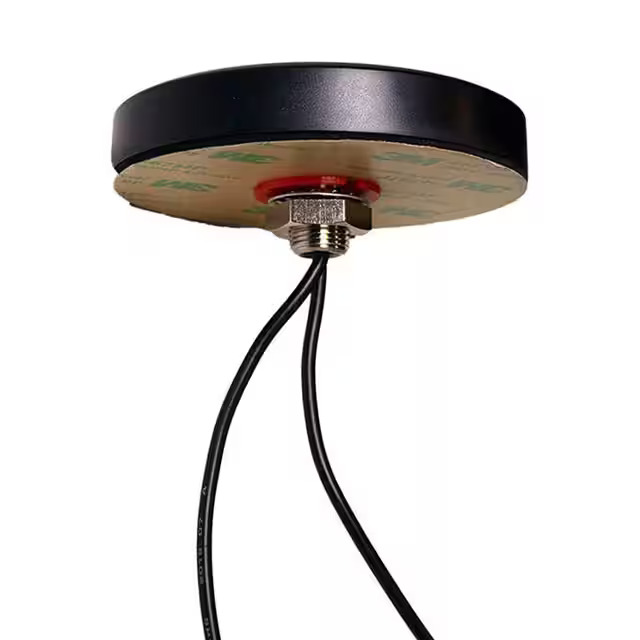

AEACBK081014-M698
829MHz, 2.2GHz 4G, LTE Dome RF Antenna 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz 2dBi, 2.5dBi Screw-Mount Screw Mount
Availability: In Stock
Get this part
We found more resources!
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AEACBK081014-M698 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

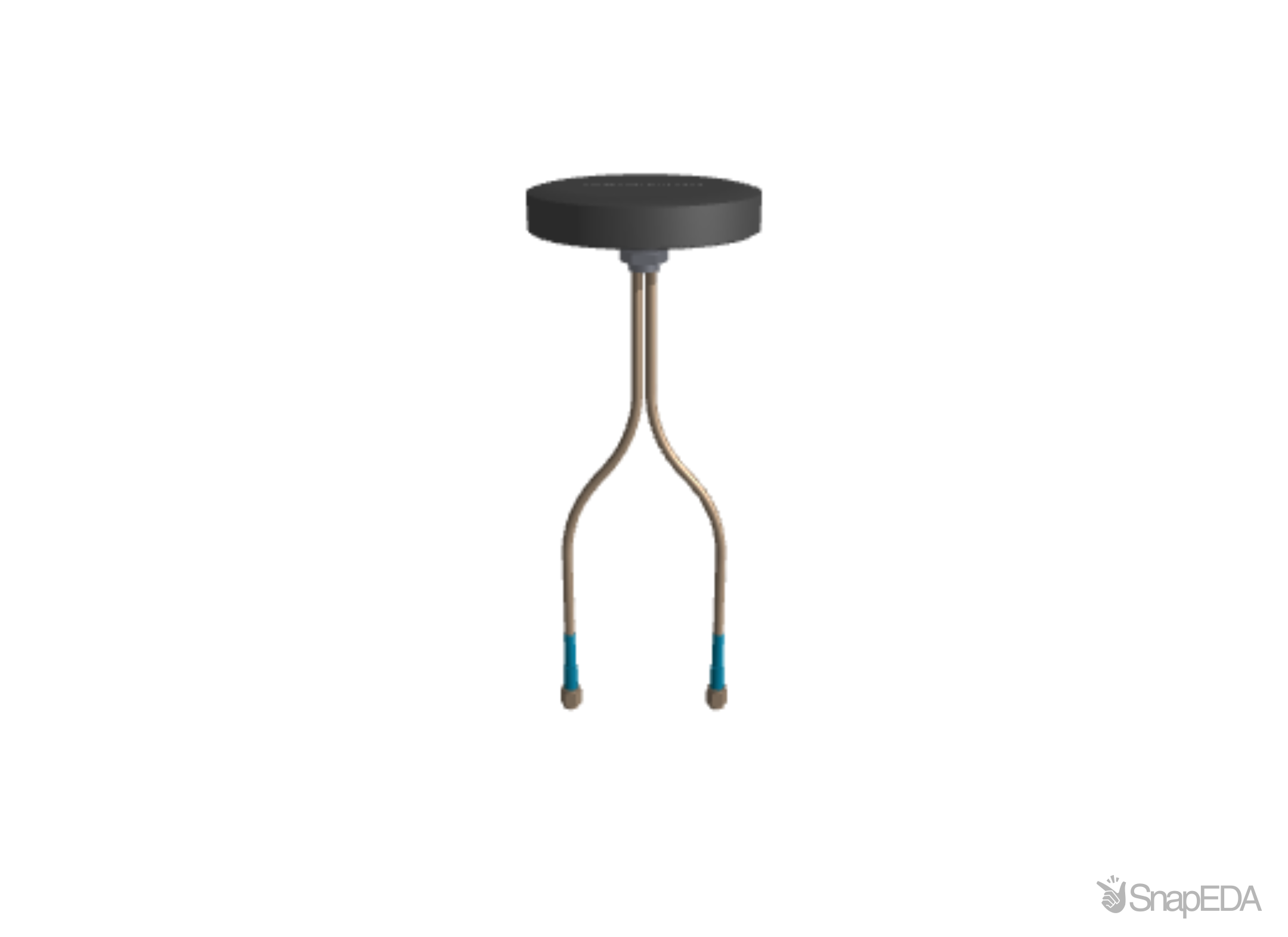

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AEACBK081014-M698
| Part Name | AEACBK081014-M698 |
| Manufacturer | Abracon |
| Frequency Range | 698 ~ 960 |1710 ~ 2690 |
| Gain Maximum | 2.9 |
| Mounting | Panel Mount |
| Polarization | Linear |
| Width | 14.5 |
| Combo | 2-in-1 |
| Type | External |
| Frequency Minimum | 698 |
| Sub-type | Puck |
| Gain Display | 2.5 |
| Length | 81.6 |
| ESD | No |
| RoHS | Yes |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | Cellular, 4G/LTE, 4G/LTE MIMO, 2G/3G/GSM, LPWA, NB-IoT/CAT-M, ISM |
| Frequency Maximum | 2690 |
| Gain Minimum | -0.71 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| VSWR | 3.5 |
| MSL level | 1 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
