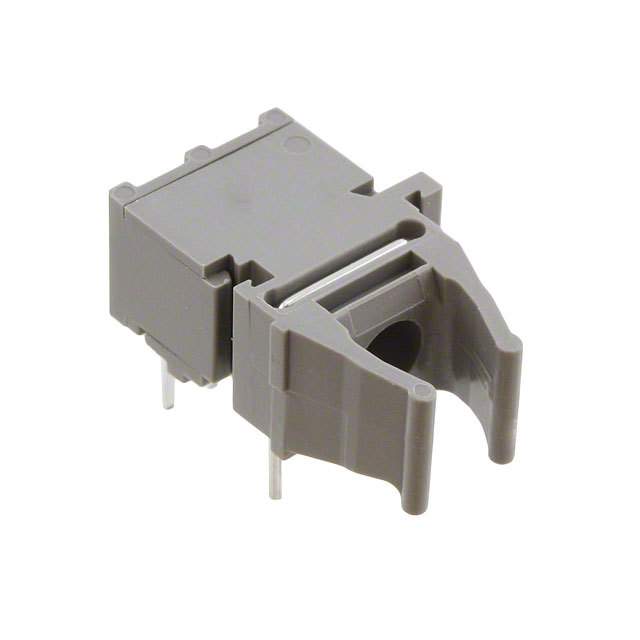

AFBR-1624Z
Fiber Optic Transmitter with Driver 650nm 50MBd 3.135V ~ 3.465V, 4.75V ~ 5.25V 21 mA
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AFBR-1624Z by Broadcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

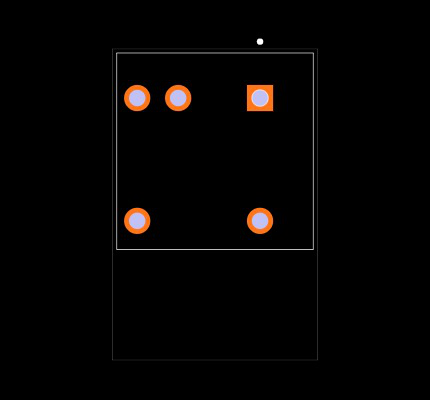

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AFBR-1624Z
| Part Name | AFBR-1624Z |
| Manufacturer | Broadcom Limited |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Data Rate | 50 (Mbit/s) |
| Mounting Type | Through Hole |
| Series | AFBR |
| Typical Rise Time | 5 (Max) (ns) |
| Connector Type | Versatile Link |
| Typical Fall Time | 5 (Max) (ns) |
| Height | 7.6 (mm) |
| Width | 12.2 (mm) |
| Forward Voltage (V) | 6 V |
| Length | 18.8 (mm) |
| Number Of Pins | 4 |
| Peak Wavelength | 685 (nm) |
| Dimensions | 18.8 x 12.2 x 7.6 (mm) |
