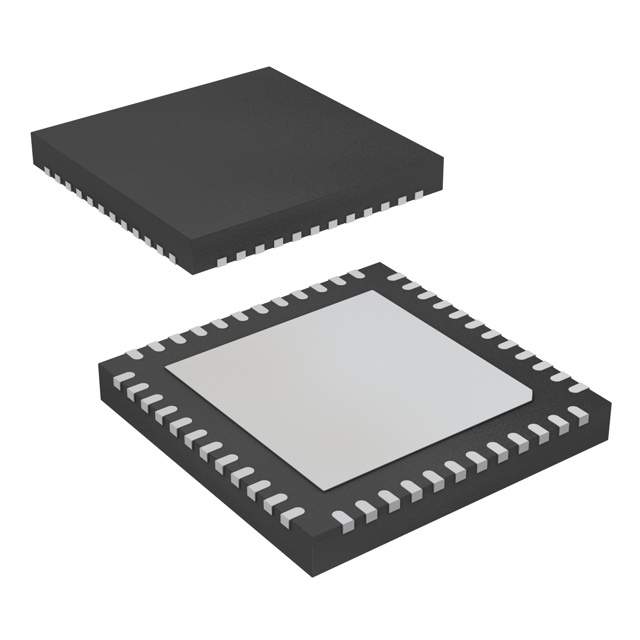

AFE031AIRGZT
1500mA, integrated, powerline communications (PLC) analog front-end for driving low-impedance lin
Availability: In Stock
Package Type: VQFN-48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AFE031AIRGZT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the AFE031AIRGZT
| Part Name | AFE031AIRGZT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 48 |
| Number Of Adcs | 1 |
| Dimensions | 7.15 x 7.15 x 0.95 (mm) |
| Maximum Operating Supply Voltage (V) | +3 (Digital) V, +7 (Power Amplifier) V |
| Application | E-Metering, Lighting, Pilot Wire, Solar |
| Power Supply Type | Dual |
| Number Of Channels Per Chip | 1 |
| Height | 0.95 (mm) |
| Width | 7.15 (mm) |
| Length | 7.15 (mm) |
| Package Type | VQFN |
| Interface Type | SPI |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Sampling Rate | 1.5 (Msps) |
| Minimum Operating Supply Voltage (V) | +24 (Power Amplifier) V, +3.6 (Digital) V |
| Resolution | 10 bit |
| Maximum Operating Temperature | +125 °C |
