AGN20024
Relay, Slim Polarized, 2 Form C, 230 mW (Nom.), Standard PC Board | Panasonic Electronic Components AGN20024
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AGN20024 by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

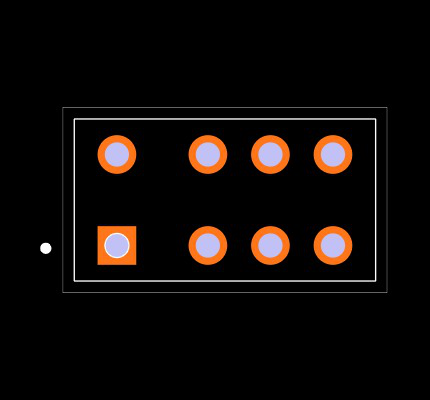

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AGN20024
| Part Name | AGN20024 |
| Manufacturer | Panasonic |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 9 x 5.7 (mm) |
| Electrical Life | 100000 Operations Cycles |
| Maximum Switching Current (Dc) (A) | 1 A |
| Application | Power |
| Height | 9 (mm) |
| Coil Resistance | 2500 (Ω) |
| Life | 100000 (Electrical) cycles, 50000000 (Mechanical) cycles |
| Coil Power | 230 (mW) |
| Maximum Switching Current (Ac) (A) | 0.3 A |
| Isolation Coil To Contact | 1.5 (kV rms) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 1 (A) |
| Coil Voltage (V) | 24 (V dc) |
| Operating Temperature Range | -40 → +85 (°C) |
| Latching | No |
| Maximum Switching Voltage (Dc) (V) | 110 (V) |
| Maximum Switching Power (Dc) | 30 W |
| Length | 10.6 (mm) |
| Contact Configuration | DPDT |
| Number Of Poles | 2 |
| Features | Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing. |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage (Ac) (V) | 125 (V) |
| Depth | 5.7 (mm) |
| Terminal Type | PCB Pin |
| Maximum Switching Power (Ac) | 37.5 (VA) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Au Plated AgPd |
Inventory for the AGN20024 by Panasonic from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,544
|
|
Visit Site | |
|
★ Featured
|
50,000
|
390 x $0.78
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
110
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Heilind Americas |
637
|
|
Visit Site | |
| Interstate Connecting Components |
212
|
|
Visit Site | |
| Newark |
200
|
|
Visit Site | |
| Onlinecomponents |
13,893
|
|
Visit Site | |
| RS Americas |
25
|
|
Visit Site | |
| Relay Specialties |
500
|
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Sager |
2,000
|
|
Visit Site | |
| TME |
1,596
|
|
Visit Site | |
| TTI Europe |
550
|
|
Visit Site | |
| Verical |
13,850
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the AGN20024
