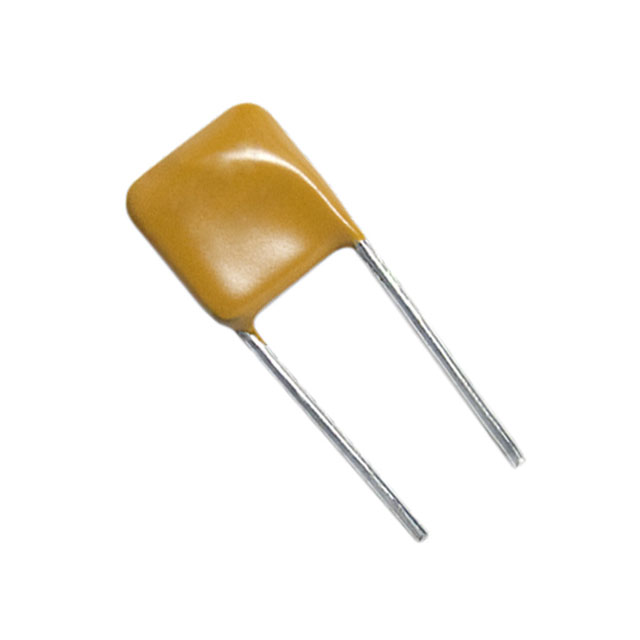

AHEF300
Polymeric PTC Resettable Fuse 32V 3 A Ih Through Hole Radial, Disc
Availability: In Stock
Package Type: RADIAL
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AHEF300 by Littelfuse and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

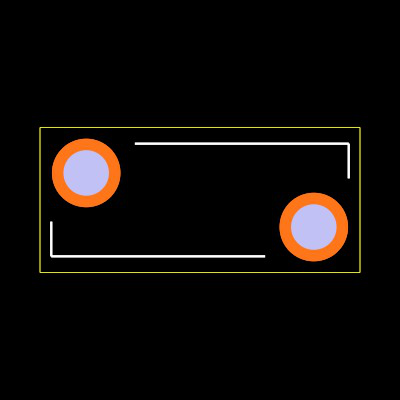

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AHEF300
| Part Name | AHEF300 |
| Manufacturer | Littelfuse Inc. |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Resistance | 0.035 (Ω) |
| Hold Current (A) | 3 (A) |
| Maximum Current (A) | 100 A |
| Voltage Rating (V) | 32 (V dc) |
| Lead Orientation | Radial |
| Power Dissipation | 3.2 (W) |
| Trip Current (A) | 6 (A) |
| Time To Trip | 5 (s) |
| Maximum Resistance | 110 (mΩ) |
Inventory for the AHEF300 by Littelfuse from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,912
|
|
Visit Site | |
|
★ Featured
|
520
|
1,265 x $0.27
|
Visit Site |
No issues have been reported for the AHEF300
