AI-2304-TF-LW120-5V-R
32X17MM INDICATOR 400HZ 79DB AUDIO 4.5V 20MA MAGNETIC SQUARE FLANGE LEAD WIRE
Availability: In Stock
Package Type: CUSTOM
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AI-2304-TF-LW120-5V-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

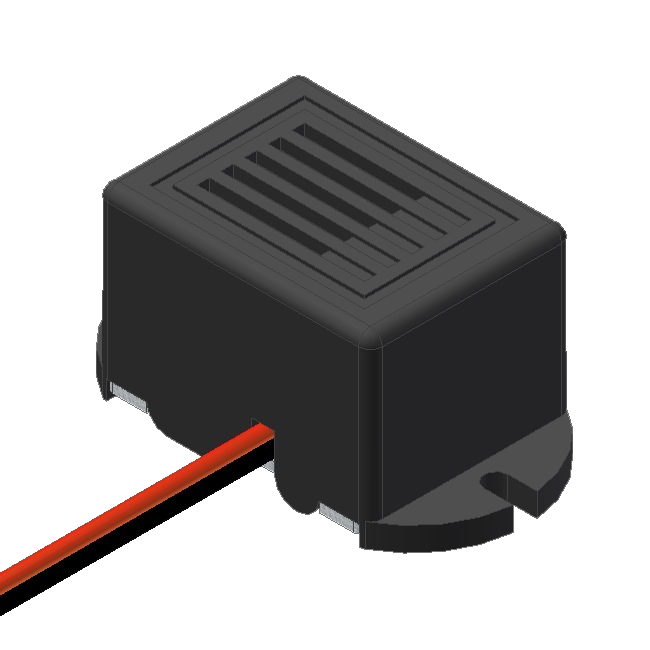

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AI-2304-TF-LW120-5V-R
| Part Name | AI-2304-TF-LW120-5V-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 79.0 |
| Rated Voltage (V) | 4.5 |
| Device Type | Electro-Mechanical |
| Lead Time | 130 |
| Resonant Frequency Khz | 0.4 |
| MULT | 100 |
| Status | Active |
| SPQ | 100 |
| Weight in grams | 9.0 |
| REACH | Yes |
| SPU | BOX |
| Tolerance Khz | 0.1 |
| Additional Features | top firing, flange, lead wire |
| Rated Current Max (A) | 20.0 |
| Terminal Material | Lead Wire |
| Country Code | CN |
| Operating Temp. | -20 to 65 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Tone or Pulse Rate | Continuous |
| Operating Voltage Min (V) | 3.0 |
| Operating Voltage Max (V) | 6.0 |
| MOQ | 100 |
| Shape | Square |
| Dimmensions in mm. | 32 x 17 x 15.55 |
| Product Link | https://www.puiaudio.com/products/ai-2304-tf-lw120-5v-r/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the AI-2304-TF-LW120-5V-R by PUI Audio from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
137
|
|
Visit Site | |
| Newark |
137
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| element14 Singapore |
137
|
|
Visit Site |
No issues have been reported for the AI-2304-TF-LW120-5V-R
