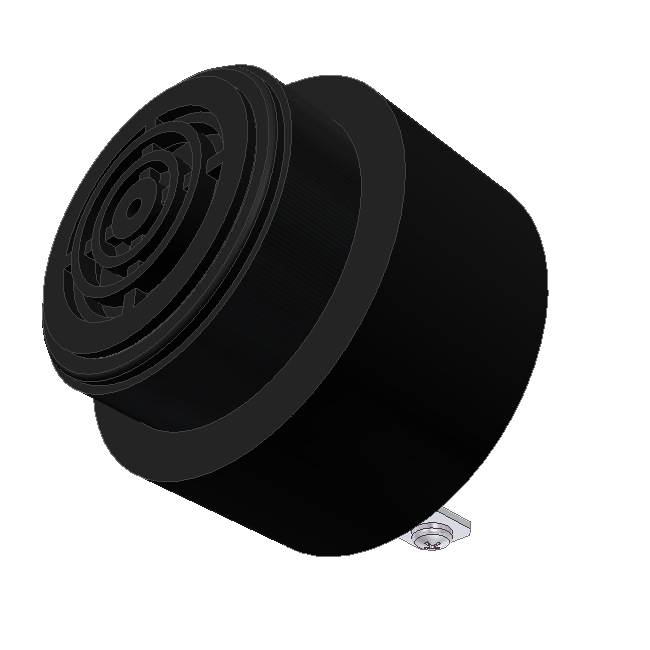

AI-4228-P-C28-R
43MM INDICATOR 2800HZ 88DB AUDIO 12V 10MA PIEZO ROUND PANEL
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AI-4228-P-C28-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

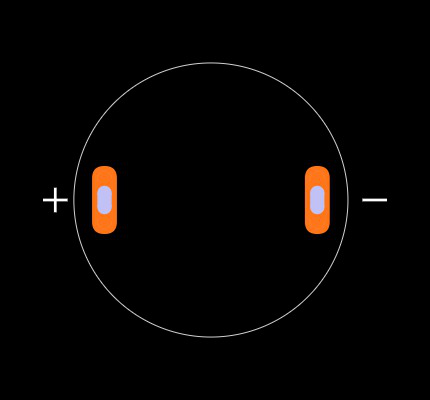

Footprint
No web preview
This Footprint is Available for

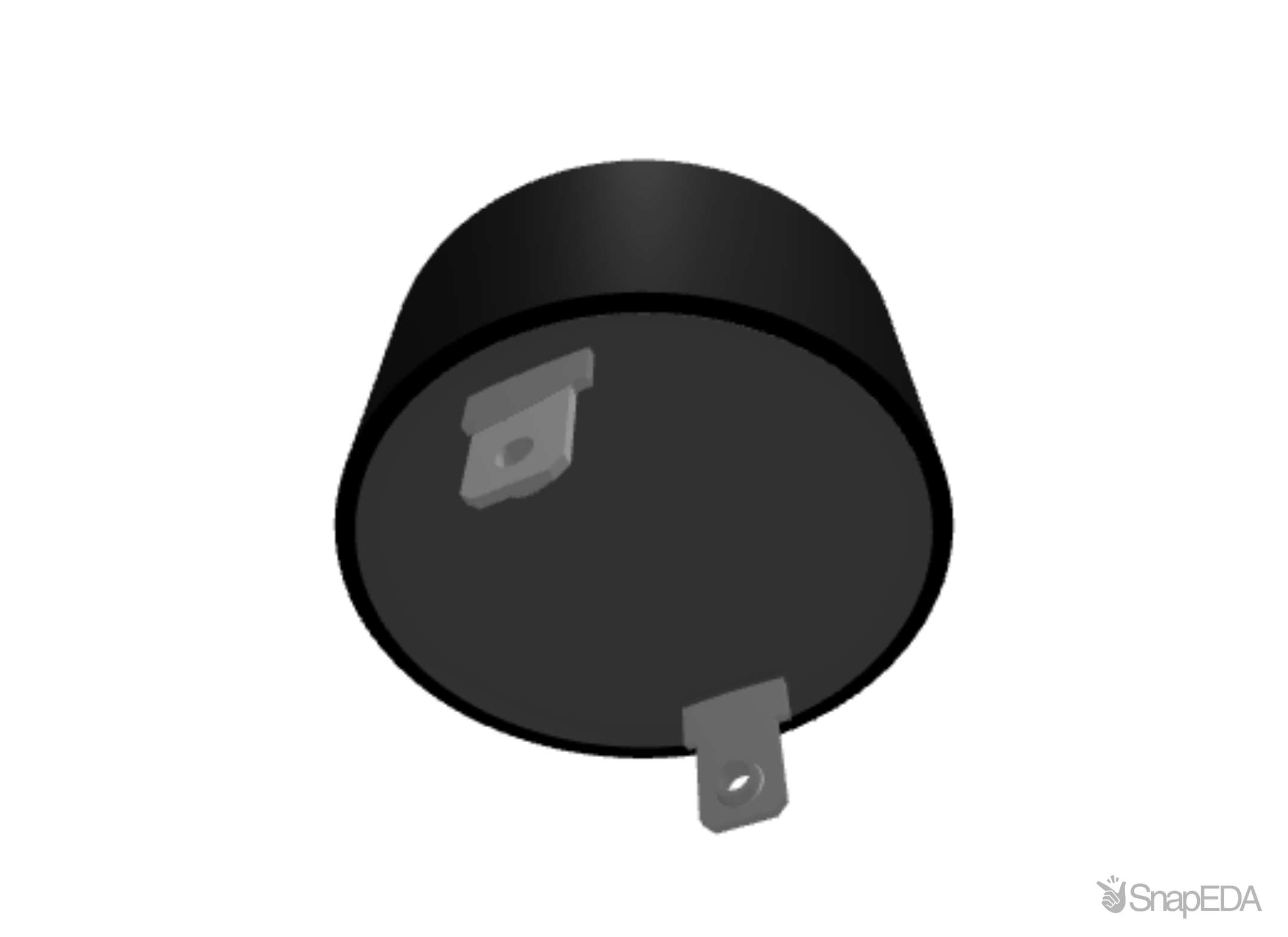

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AI-4228-P-C28-R
| Part Name | AI-4228-P-C28-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 88.0 |
| Rated Voltage (V) | 12.0 |
| Device Type | Piezo |
| Lead Time | 130 |
| Resonant Frequency Khz | 2.8 |
| MULT | 40 |
| Status | Active |
| SPQ | 40 |
| Weight in grams | 40.0 |
| REACH | No |
| SPU | BOX |
| Tolerance Khz | 0.5 |
| Additional Features | panel |
| Rated Current Max (A) | 10.0 |
| Exemption | 7C |
| Terminal Material | Sn Plated Bronze |
| Country Code | CN |
| Operating Temp. | -30 to 85 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Tone or Pulse Rate | Continuous |
| Operating Voltage Min (V) | 6.0 |
| Operating Voltage Max (V) | 28.0 |
| MOQ | 40 |
| Shape | Round |
| Dimmensions in mm. | 42.5 x 42.5 x 43 |
| Product Link | https://www.puiaudio.com/products/ai-4228-p-c28-r/ |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
