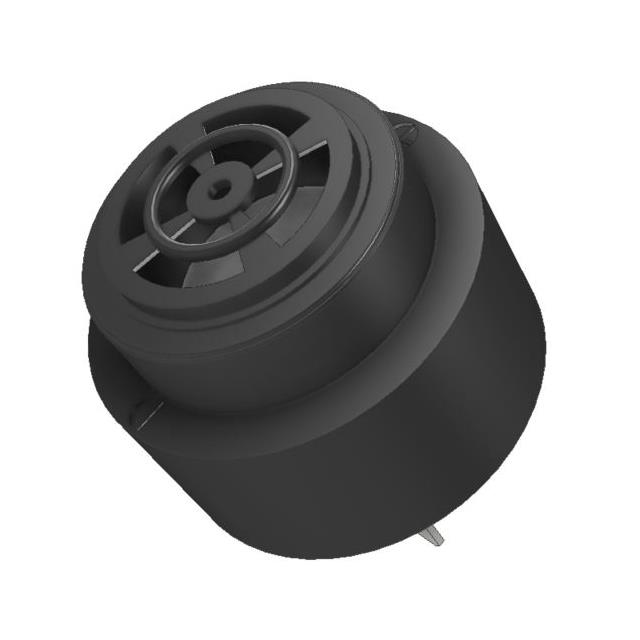

AI-4429-P-CP12-3-R
SnapVerified
43MM INDICATOR 2900HZ 105DB
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AI-4429-P-CP12-3-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the AI-4429-P-CP12-3-R
Part Name | AI-4429-P-CP12-3-R |
Manufacturer | PUI Audio |
SPL at 10 cm | 105.0 |
Exemption | 7C |
Rated Voltage (V) | 12.0 |
Rated Current Max (A) | 25.0 |
Product Link | https://puiaudio.com/product/indicators/ai-4429-p-cp12-3-r |
Country Code | CN |
Device Type | Piezo |
Operating Temp. | -20 to 60 |
Lead Time | 130 |
MOQ | 1000 |
Resonant Frequency Khz | 2.9 |
MULT | 40 |
Status | Active |
HTS Code | 8531.80.9041 |
Tone or Pulse Rate | 1.5 pulse/sec |
Operating Voltage Min (V) | 4.0 |
Operating Voltage Max (V) | 16.0 |
SPQ | 40 |
Weight in grams | 38.5 |
REACH | No |
SPU | BOX |
Shape | Round |
Dimmensions in mm. | 43 x 43 x 33.5 |
RoHS | Yes |
Tolerance Khz | 0.5 |
Additional Features | 3 Pin, panel, top firing |
Terminal Material | Ni Plated Brass |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Inventory for the AI-4429-P-CP12-3-R by PUI Audio from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
|
58
|
|
Visit Site |
No issues have been reported for the AI-4429-P-CP12-3-R
If you experienced any issues with the symbol or footprint, please report it.
