AIML-0805-R068K-T
Ind RF Chip Shielded Multi-Layer 68nH 10% 50MHz 15Q-Factor Ferrite 300mA 0805 T/R
Availability: In Stock
Package Type: 2012
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AIML-0805-R068K-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

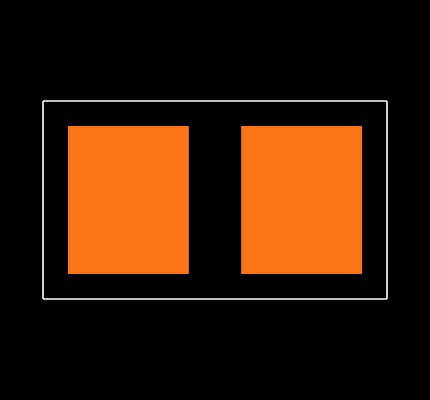

Footprint
No web preview
This Footprint is Available for

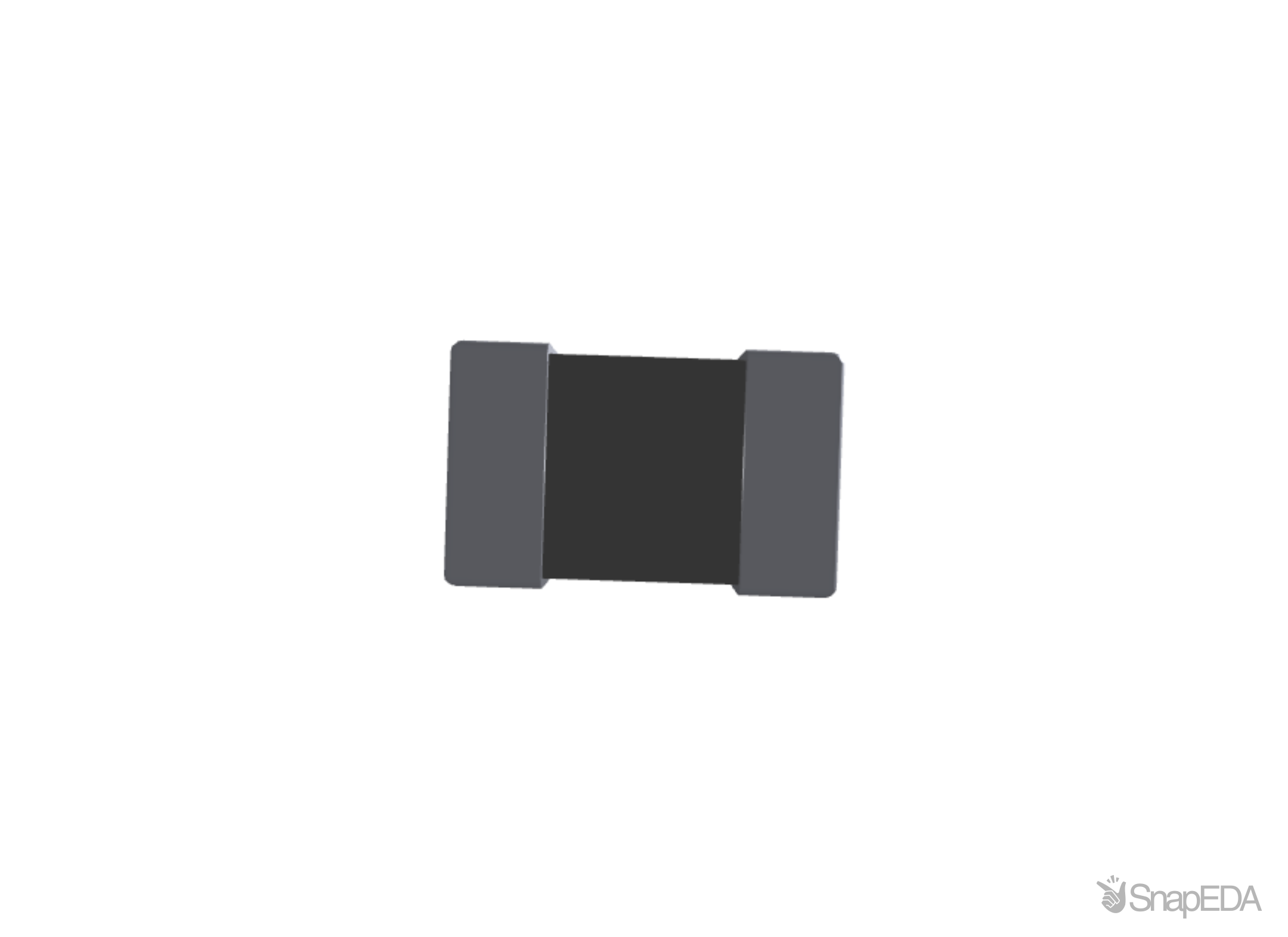

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AIML-0805-R068K-T
| Part Name | AIML-0805-R068K-T |
| Manufacturer | Abracon |
| Current Rating (A) | 0.3 |
| Application | Power |
| Operating Temperature | -55°C ~ +125°C |
| Inductance Test Condition | 50 |
| Type | Multilayer |
| Shielding | Shielded |
| Q Test Frequency | 50 |
| DC Resistance Max | 200 |
| Tolerance | 10 |
| Current Rating Test Condition (A) | 5.0 |
| Temperature Rise Current Test Condition (A) | 5.0 |
| Inductance | 0.068 |
| Saturation current (A) | 0.3 |
| Moisture Sensitivity Level | 2 |
| SRF | 280 |
| Length | 2.0 |
| Product Line | Inductors & Connectivity |
| RoHS | Yes |
| NPI | No |
| Family | AIML |
| Mounting Type | SMD |
| Width | 1.25 |
| Series | AIML-0805 |
| Upper Bound Operating Temperature | 125.0 |
| Height | 0.85 |
| Product Link | https://abracon.com/parametric/inductors/AIML-0805-R068K-T |
| Lower Bound Operating Temperature | -55.0 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the AIML-0805-R068K-T by Abracon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,417
|
|
Visit Site | |
|
★ Featured
|
10,636
|
|
Visit Site | |
| Arrow Electronics |
4,000
|
3,106 x $0.03
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Verical |
4,000
|
3,067 x $0.03
|
Visit Site |
No issues have been reported for the AIML-0805-R068K-T
If you experienced any issues with the symbol or footprint, please report it.
