AIML-0805-R47K-T
IND 0.47uH 0.2A 650mΩ
Availability: In Stock
Package Type: 2012
CAD Models: Symbol, Footprint, 3D Model
Get this part
We found more resources!
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AIML-0805-R47K-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

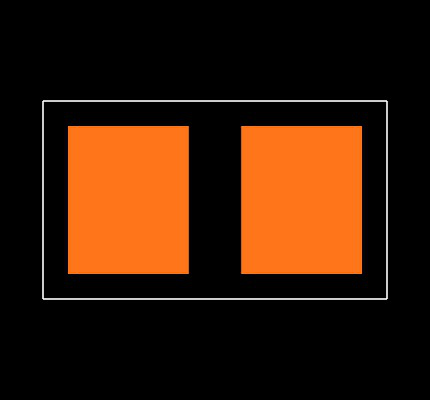

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AIML-0805-R47K-T
| Part Name | AIML-0805-R47K-T |
| Manufacturer | Abracon |
| Current Rating (A) | 0.2 |
| Width | 1.25 |
| Operating Temperature | -55°C ~ +125°C |
| Inductance Test Condition | 25 |
| Tolerance | 10 |
| Shielding | Shielded |
| Q Test Frequency | 25 |
| DC Resistance Max | 650 |
| Current Rating Test Condition (A) | 5.0 |
| Temperature Rise Current Test Condition (A) | 5.0 |
| Inductance | 0.47 |
| Saturation current (A) | 0.2 |
| Moisture Sensitivity Level | 2 |
| SRF | 125 |
| Length | 2.0 |
| Lower Bound Operating Temperature | -55.0 |
| RoHS | Yes |
| Application Note | https://abracon.com/uploads/resources/Abracon-Inductor-Reference-Guide.pdf |
| NPI | No |
| Family | AIML |
| Mounting Type | SMD |
| Application | Power |
| Series | AIML-0805 |
| Upper Bound Operating Temperature | 125.0 |
| Height | 0.85 |
| Type | Multilayer |
| Product Link | https://abracon.com/parametric/inductors/AIML-0805-R47K-T |
| Product Line | Inductors & Connectivity |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the AIML-0805-R47K-T by Abracon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
24,000
|
4,000 x $0.04
|
Visit Site | |
|
★ Featured
|
3,982
|
|
Visit Site | |
|
★ Featured
|
5,550
|
10,105 x $0.03
|
Visit Site | |
| Onlinecomponents |
4,800
|
|
Visit Site | |
| Verical |
24,000
|
4,000 x $0.04
|
Visit Site |
No issues have been reported for the AIML-0805-R47K-T
