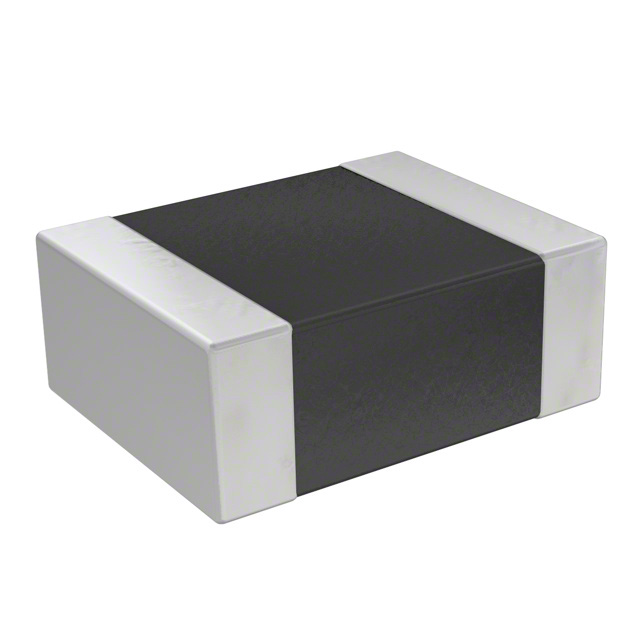

AIML-1008HC-4R7M-T
IND 4.7uH 1.1A 120mΩ
Availability: Out of Stock
Package Type: 2520
CAD Models: Symbol, Footprint, 3D Model
More Resources
Technical documentation for this part
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AIML-1008HC-4R7M-T by Abracon LLC and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the AIML-1008HC-4R7M-T
Part Name | AIML-1008HC-4R7M-T |
Manufacturer | Abracon LLC |
NPI | No |
Current Rating (A) | 1.1 |
Product Link | https://abracon.com/uploads/resources/Abracon-Inductor-Reference-Guide.pdf |
Temperature Rise Current (A) | 0.15 |
Width | 2.0 |
Operating Temperature | -40°C ~ +85°C |
Length | 2.5 |
Inductance Test Condition | 1 |
Lower Bound Operating Temperature | -40.0 |
SRF | 20 |
Upper Bound Operating Temperature | 85.0 |
Tolerance | 20 |
RoHS | Yes |
Application Note | https://abracon.com/uploads/resources/Abracon-Inductor-Reference-Guide.pdf |
Shielding | Shielded |
Mounting Type | SMD |
Family | AIML |
Application | Power |
Type | Multilayer |
DC Resistance Max | 120 |
Height | 0.85 |
Current Rating Test Condition (A) | 30.0 |
Temperature Rise Current Test Condition (A) | 30.0 |
Inductance | 4.7 |
Series | AIML-1008HC |
Product Line | Inductors & Connectivity |
Pb Free | Yes |
Saturation current (A) | 1.1 |
Moisture Sensitivity Level | 1 |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
No issues have been reported for the AIML-1008HC-4R7M-T
