AIS328DQ

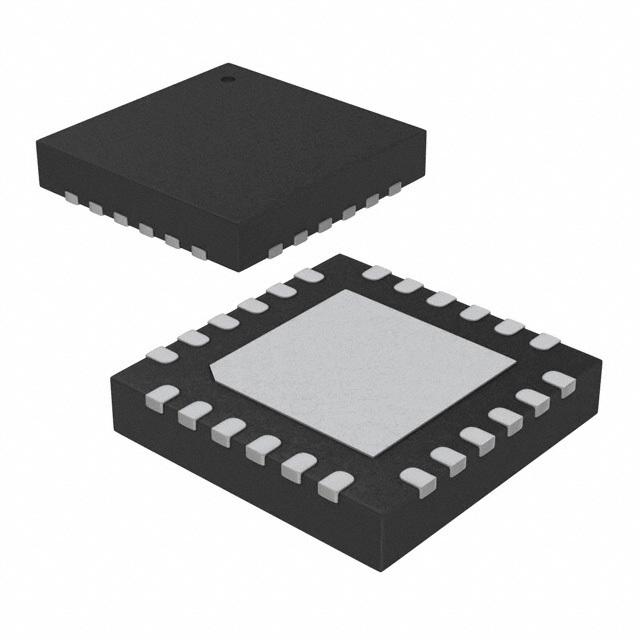

Accelerometer X, Y, Z Axis ±2g, 4g, 8g 25Hz ~ 500Hz 24-QFN (4x4)
Availability: In Stock
Package Type: QFN-24
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AIS328DQ by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

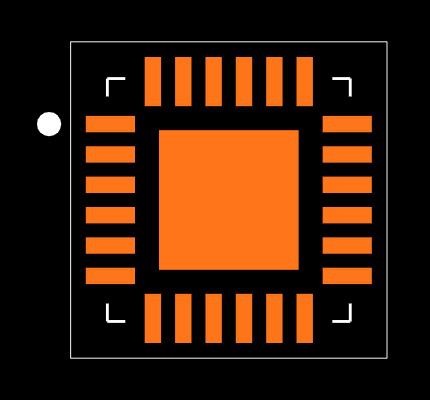

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AIS328DQ
| Part Name | AIS328DQ |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Axis | 3 |
| Sensor Type | Accelerometer |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +105 °C |
| Sensitivity | 4.25 (mg/digit) |
| Minimum Operating Supply Voltage (V) | 2.4 V |
| Package Type | QFPN |
| Interface Type | I2C, SPI |
| Minimum Operating Temperature | -40 °C |
| Minimum Frequency Response | 0 (kHz) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Maximum Frequency Response | 400 (kHz) |
| Technology | Digital |
| Pin Count | 24 |
