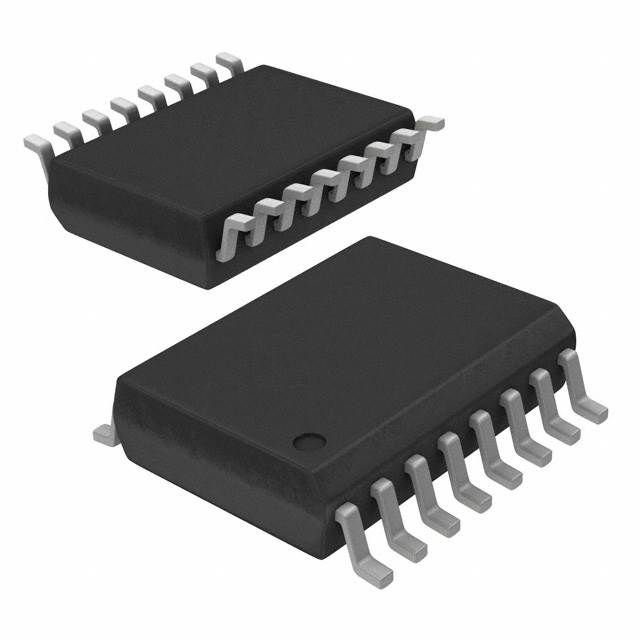

AMC1305M25DW
±250-mV input, precision current sensing reinforced isolated modulator
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AMC1305M25DW by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

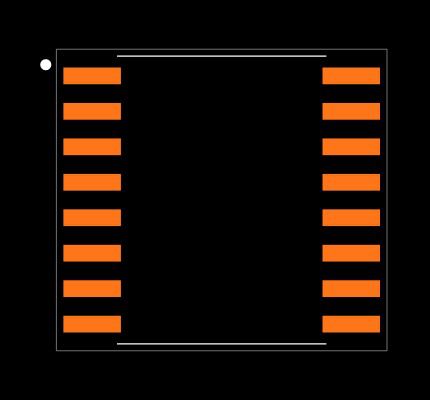

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AMC1305M25DW
| Part Name | AMC1305M25DW |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Adcs | 1 |
| Integral Nonlinearity Error | ±4 (LSB) |
| Dimensions | 10.5 x 7.6 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Resolution | 12-bit |
| Power Supply Type | Single |
| Input Signal Type | Differential |
| Typical Single Supply Voltage (V) | 3 → 5.5 V |
| Package Type | SOIC |
| Architecture | Delta Sigma |
| Minimum Operating Temperature | -40 °C |
| Sampling Rate | 20 (Msps) |
| Input Type | Voltage |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 16 |
Inventory for the AMC1305M25DW by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
167
|
|
Visit Site | |
|
★ Featured
|
34,687
|
155 x $1.94
|
Visit Site | |
| Arrow Europe |
920
|
|
Visit Site | |
| Texas Instruments |
3,365
|
|
Visit Site |
No issues have been reported for the AMC1305M25DW
If you experienced any issues with the symbol or footprint, please report it.
