AMM-2742-T-EB-R
AMM-2742-T-R EVAL BOARD MEMS MIC EVAL BD 42DB 2VDC 300 OHM 59 DB MEMS EVAL BOARD
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AMM-2742-T-EB-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

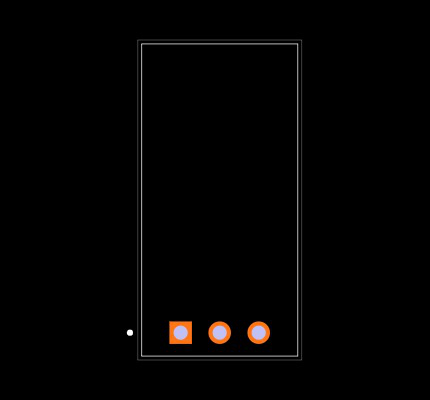

Footprint
No web preview
This Footprint is Available for

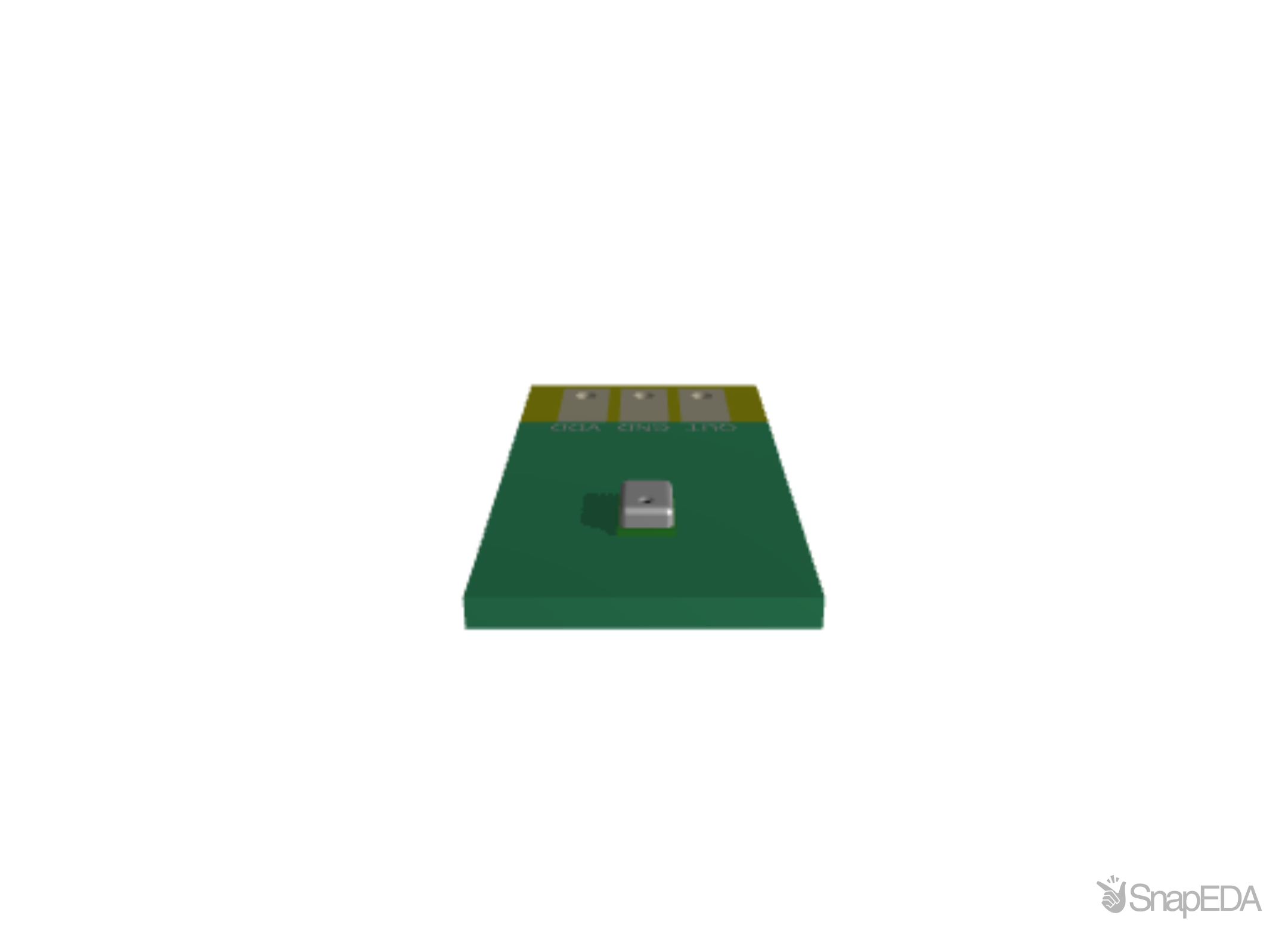

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AMM-2742-T-EB-R
| Part Name | AMM-2742-T-EB-R |
| Manufacturer | PUI Audio |
| Status | Active |
| HTS Code | 8534.00.0070 |
| Freq min in Khz | 0.02 |
| SPQ | 4 |
| MOQ | 4 |
| Freq max in Khz | 20.0 |
| REACH | Yes |
| SPU | PACK |
| Country Code | CN |
| Tolerance - dB | 1 |
| Input Power Max | 3.6 |
| Rated Input Power | 2.0 |
| MULT | 4 |
| Operating Temp. | -40 to 70 |
| Product Link | https://www.puiaudio.com/products/amm-2742-t-eb-r/ |
| Lead Time | 110 |
| Impedance kOhms | 0.3 |
| Sensitivity in dB | 42.0 |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
