AMP02FSZ
SP Amp INSTR Amp Single }18V 16-Pin SOIC W Tube
Availability: Out of Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AMP02FSZ by Analog Devices and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

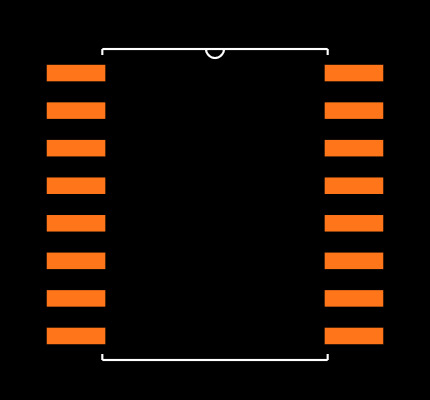

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AMP02FSZ
| Part Name | AMP02FSZ |
| Manufacturer | Analog Devices |
| Product Category | Instrumentation Amplifiers |
| Package | SOIC 300 MIL |
| MOQ | 1 |
| RoHS value | Yes |
| Part Launch Date | 9/20/2005 4:53:20 AM |
| Pins | 16 |
| Product Link | https://www.analog.com/en/products/amp02.html?ADICID=SYND_WW_P682800_PF-snapeda |
| Temperature Range | -40 to 85C |
| Product Lifecycle | Production |
| RoHS | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Minimum Cmrr | 75 (dB) |
| Maximum Input Offset Voltage (V) | 40 (µV) |
| Typical Dual Supply Voltage (V) | ±12 V, ±15 V, ±5 V, ±9 V |
| Dimensions | 10.5 x 7.6 x 2.35 (mm) |
| Mounting Type | Surface Mount |
| Width | 7.6 (mm) |
| Power Supply Type | Dual |
| Typical Gain Bandwidth Product | 1.2 (MHz) |
| Height | 2.35 (mm) |
| Maximum Input Resistance | 16.5 (GΩ) |
| Length | 10.5 (mm) |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40 °C |
| Rail To Rail | No |
| Maximum Supply Current (A) | 6 mA |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 16 |
