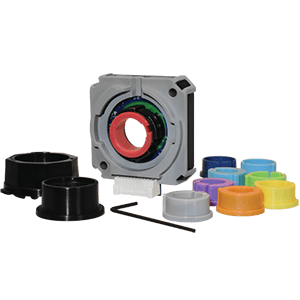

AMT132S-V
Straight (Axial) Orientation, CMOS Voltage
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AMT132S-V by Same Sky and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AMT132S-V
| Part Name | AMT132S-V |
| Manufacturer | Same Sky |
| Resolution (PPR) | 100, 1000, 1024, 125, 1600, 192, 200, 2000, 2048, 250, 2500, 256, 360, 384, 400, 4096, 48, 500, 512, 768, 800, 96 |
| Orientation | Radial |
| RoHS and REACH Link | https://www.cuidevices.com/product/resource/material-compliance/amt132s-v |
| Input Voltage (Vdc) (V) | 4.5 ~ 5.5 |
| Encoder Type | Incremental |
| Output Type | CMOS Voltage, Line Driver |
| Package Type | Modular |
| Shaft (Bore) Ø (mm) | 10, 11, 12, 12.7, 13, 14, 15, 15.875, 9, 9.525 |
| Operating Temp. (°C) | -40 ~ 125 |
| Speed, Max. (RPM) | 2500, 4000, 8000 |
| RoHS | True |
