ANM-5054L-2-R
10MM ECM MIC 500~20000HZ 54DB 1V 0.5MA IP52 OMNIDIRECTIONAL
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ANM-5054L-2-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

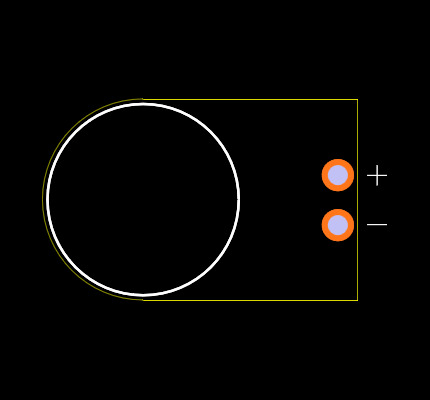

Footprint
No web preview
This Footprint is Available for

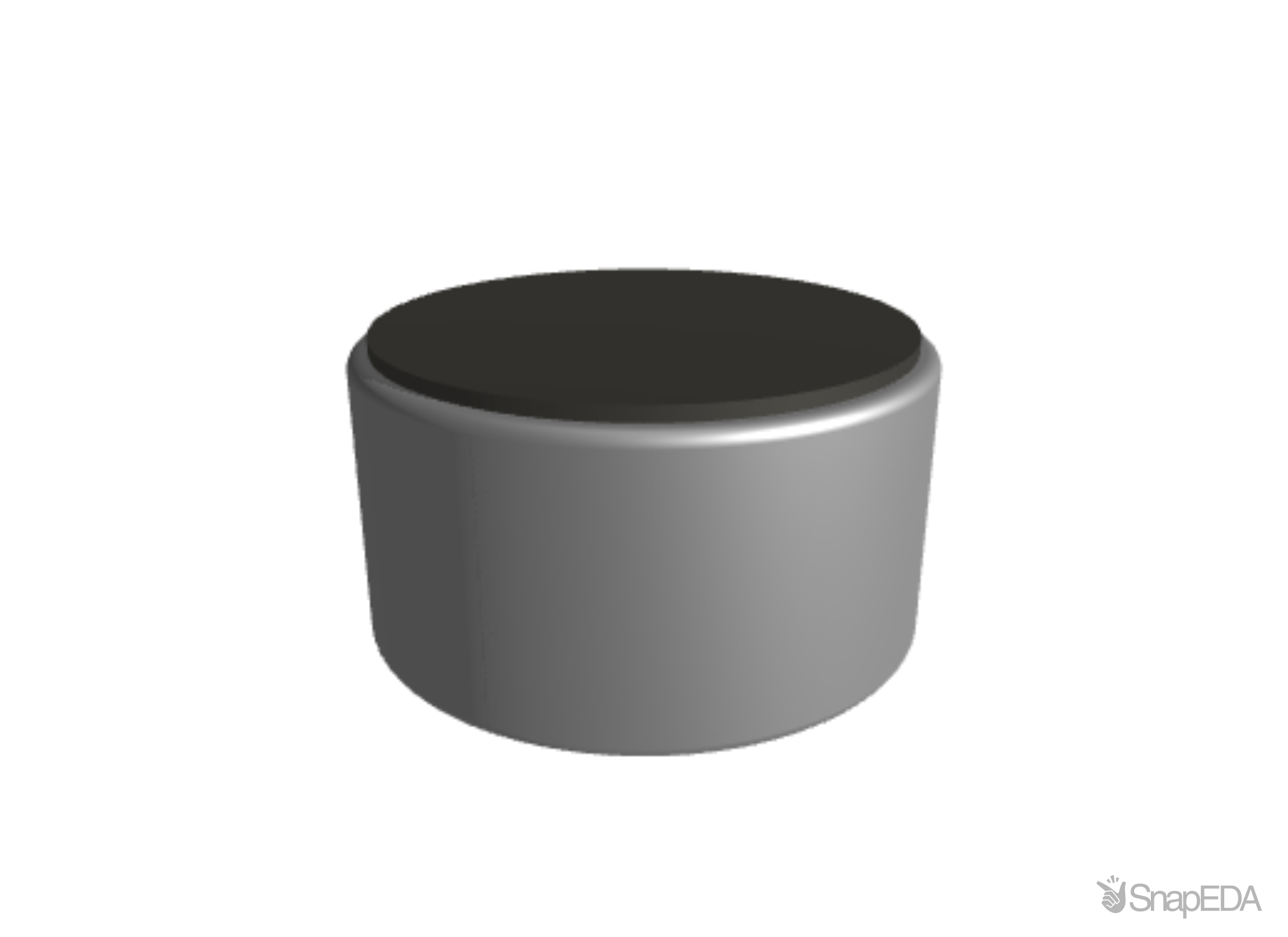

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ANM-5054L-2-R
| Part Name | ANM-5054L-2-R |
| Manufacturer | PUI Audio |
| Directivity | Analog |
| Vcc Standard | 10.0 |
| Terminal | solder pads |
| Freq Response max in Khz | 1.5 |
| Lead Time | 110 |
| MULT | 100 |
| Freq Response min in Khz | 10.0 |
| Status | Active |
| Sensivity Variation in dB | 4.0 |
| SPQ | 100 |
| REACH | Yes |
| SPU | BOX |
| RoHS | Yes |
| Acoustic Overload Point in dB | 110.0 |
| IP Rating | IP52 |
| Country Code | CN |
| Operating Temp. | -40 to 85 |
| Temp. Grade | High |
| Icc in mA | 0.5 |
| Resistance Loading in kOhm | 0.1 |
| HTS Code | 8518.10.8030 |
| MOQ | 100 |
| Vcc max | 0.5 |
| Product Link | https://www.puiaudio.com/products/anm-5054l-2-r |
| Sensitivity in dB | -54.0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
