APAE1575R1840BADB1F-T
1.575GHz GPS Ceramic Patch RF Antenna 1.557GHz ~ 1.563GHz 3.3dBic Pin Adhesive
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the APAE1575R1840BADB1F-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

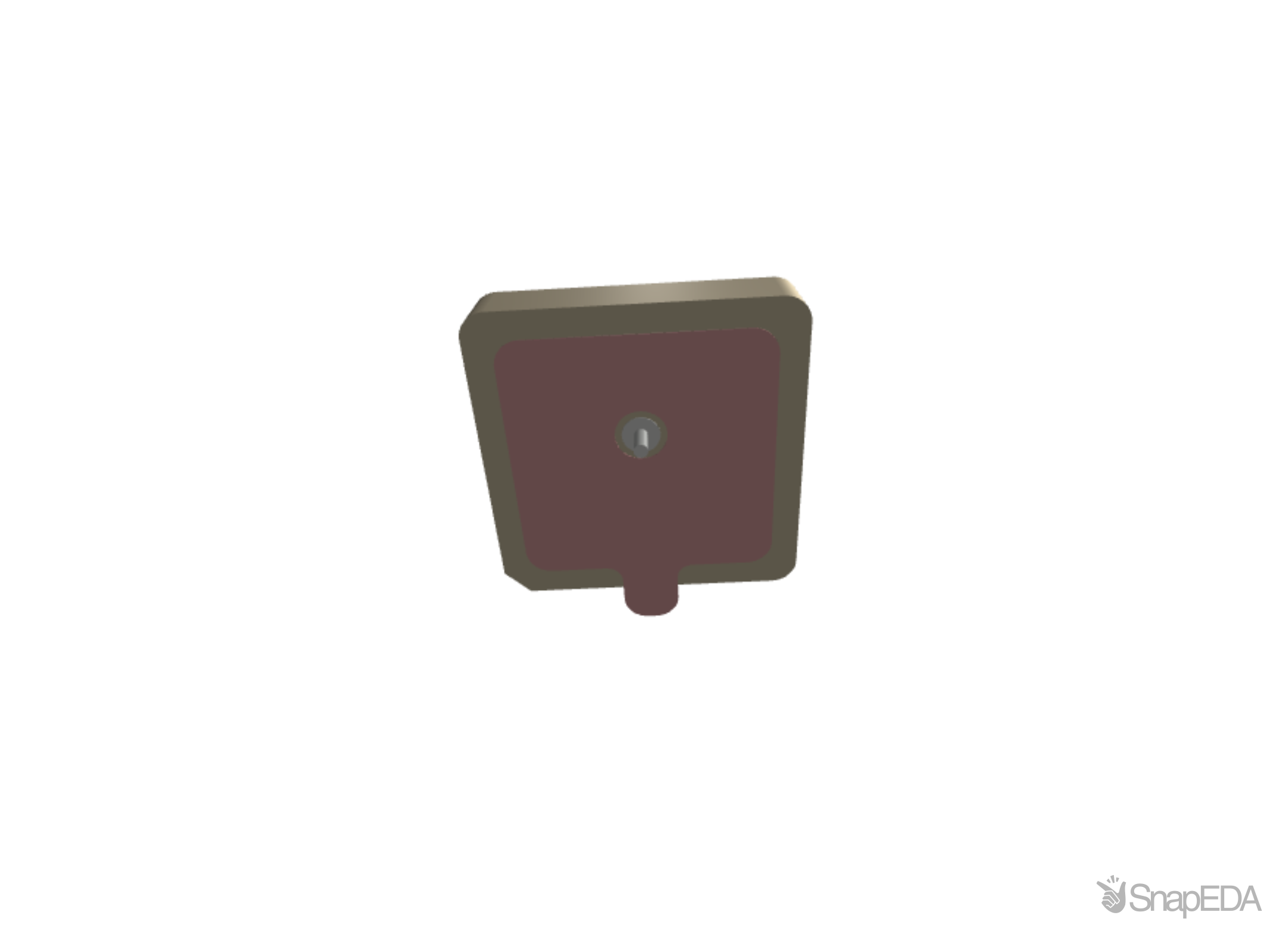

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the APAE1575R1840BADB1F-T
| Part Name | APAE1575R1840BADB1F-T |
| Manufacturer | Abracon |
| Frequency Range | 1575.42 |
| Gain Maximum | 3.3 |
| Mounting | Through-Hole Mount Adhesive Tape |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Width | 18 |
| L Gain | 0 |
| Type | Internal/Embedded |
| Bandwidth Max | 6 |
| Frequency Minimum | 1575.42 |
| Sub-type | Passive Patch |
| Gain Display | 3.3 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Length | 18 |
| ESD | Yes |
| Bandwidth Min | 6 |
| RoHS | Yes |
| Polarization | RHCP |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | GNSS, GPS |
| Frequency Maximum | 1575.42 |
| Height | 4 |
| Gain Minimum | 3.3 |
| Bandwidth Range | 6 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Antenna Mounting Type | Through Hole |
| Antenna Directivity | Omnidirectional |
| Connector Type | SMA |
| Internal External | Internal |
| Antenna Physical Form | Patch |
| Includes Lead | Yes |
Inventory for the APAE1575R1840BADB1F-T by Abracon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
822
|
|
Visit Site | |
|
★ Featured
|
2,564
|
|
Visit Site | |
|
★ Featured
|
1,377
|
N/A | Visit Site | |
| Onlinecomponents |
750
|
|
Visit Site | |
| Verical |
750
|
35 x $1.83
|
Visit Site |
No issues have been reported for the APAE1575R1840BADB1F-T
