APAMP-129

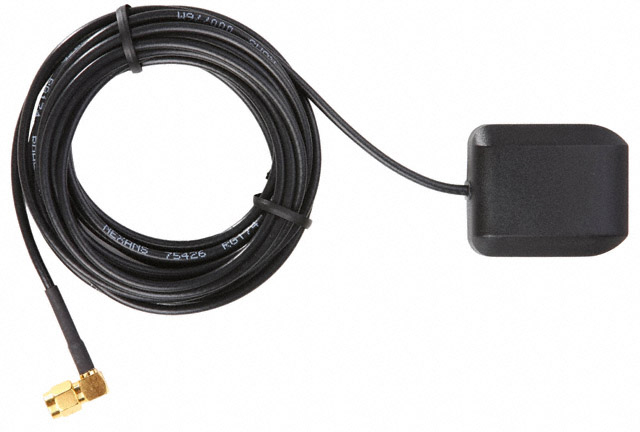

GPS ACTIVE PUCK ANT MAG SMA-JW3
Availability: Out of Stock
More Resources
Technical documentation for this part
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the APAMP-129 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the APAMP-129
| Part Name | APAMP-129 |
| Manufacturer | Abracon |
| Frequency Range | 1576.44 |
| Gain Maximum | 5 |
| Mounting | Magnetic Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Width | 37 |
| L Gain | 0 |
| Type | External |
| Bandwidth Max | 10 |
| Frequency Minimum | 1576.44 |
| Sub-type | Puck |
| Gain Display | 5 |
| Bandwidth Range | 10 |
| Length | 44 |
| ESD | Yes |
| Bandwidth Min | 10 |
| RoHS | Yes |
| Polarization | RHCP |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | GNSS, GPS |
| Frequency Maximum | 1576.44 |
| Height | 14.5 |
| Gain Minimum | 5 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Pb Free | No |
