APAMSJ-137
5GHZ WIFI WHIP STR ANT SMA (M)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the APAMSJ-137 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
2D Model
The 2D model for this
part is not available

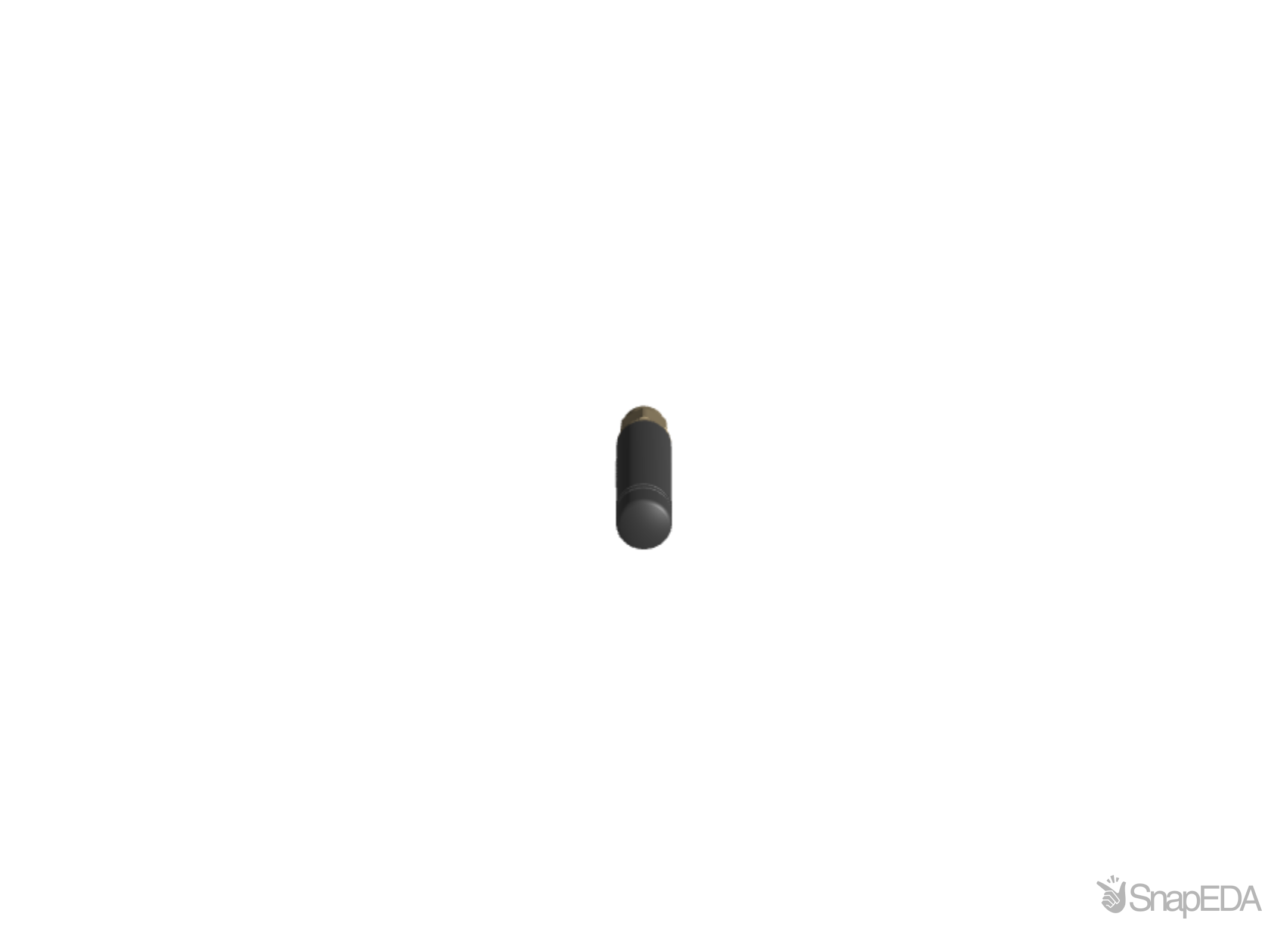

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the APAMSJ-137
| Part Name | APAMSJ-137 |
| Manufacturer | Abracon |
| Frequency Range | 4850 ~ 5850 |
| Gain Maximum | 5 |
| Mounting | Connector Mount |
| Polarization | Linear |
| Width | 9.6 |
| L Gain | 0 |
| Type | Internal/Embedded |
| Bandwidth Max | 1000 |
| Frequency Minimum | 4850 |
| Sub-type | Whip |
| Gain Display | 5 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Length | 44 |
| ESD | No |
| Bandwidth Min | 1000 |
| RoHS | Yes |
| Frequency Group | SHF (f > 4GHz) |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | Wi-Fi/BT, Wi-Fi, ISM |
| Frequency Maximum | 5850 |
| Gain Minimum | 5 |
| Bandwidth Range | 1000 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Frequency Range | 5 GHz |
| Mounting Type | Direct |
| Antenna Mounting Type | Direct |
| Antenna Directivity | Omnidirectional |
| Rf Protocols | 5G |
| Connector Type | SMA |
| Internal External | External |
| Antenna Physical Form | Rod |
| Gain | 5 (dBi) |
| Connector Gender | Male |
Inventory for the APAMSJ-137 by Abracon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
661
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
345
|
|
Visit Site |
No issues have been reported for the APAMSJ-137
