APARM2508S-SG3L5
GNSS/GPS L1+L5 STACKED PATCH ANT PIN
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the APARM2508S-SG3L5 by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

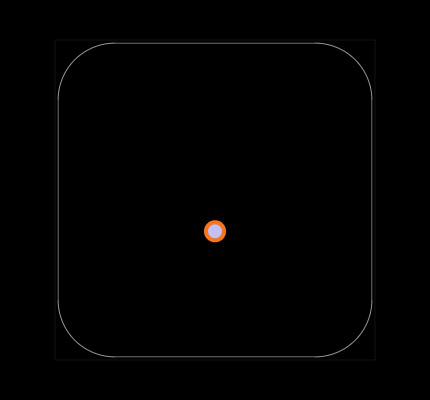

Footprint
No web preview
This Footprint is Available for

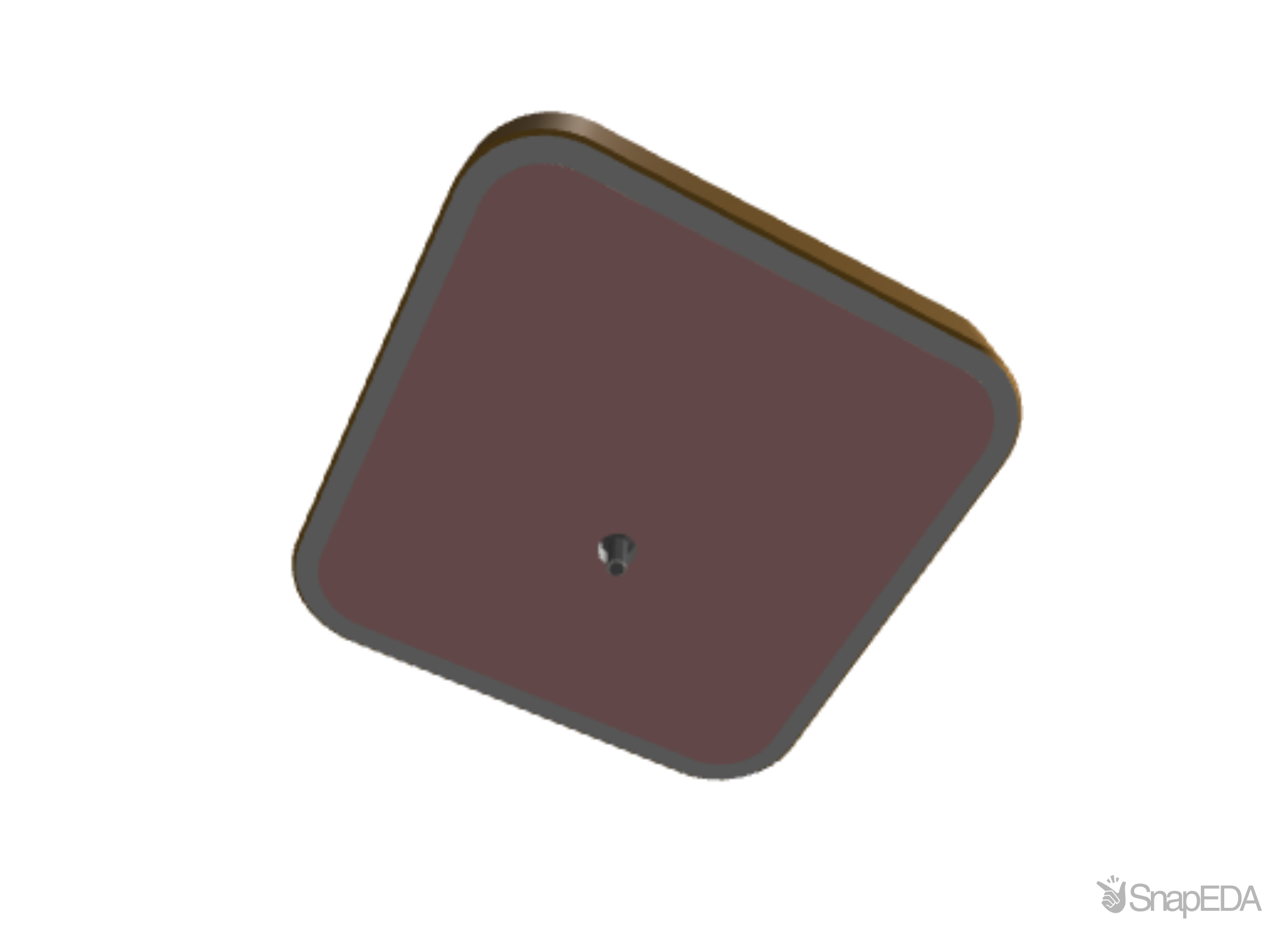

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the APARM2508S-SG3L5
| Part Name | APARM2508S-SG3L5 |
| Manufacturer | Abracon LLC |
| Frequency Range | 1176 | 1561 | 1575 | 1577 | 1602 |
| Gain Maximum | 3.4 |
| Mounting | Through-Hole Mount |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Width | 25.1 |
| Type | Internal/Embedded |
| Bandwidth Max | 22 |
| Frequency Minimum | 1176 |
| Sub-type | Passive Patch |
| Gain Display | 0.5 | 2.4 | 0.6 | 0.6 | 3.4 |
| Product Link | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Length | 25.1 |
| ESD | No |
| Bandwidth Min | 3 |
| RoHS | Yes |
| Polarization | RHCP |
| Application Note | https://abracon.com/uploads/resources/Abracon-Antennas-for-High-Precision-GNSS-Applications.pdf |
| Protocol | GNSS, GPS, GPS L1/L2/L5/L6, GPS/GLONASS, GPS/GLONASS/BeiDou, GPS/GLONASS/BeiDou/Galileo/QZSS |
| Frequency Maximum | 1602 |
| Height | 8 |
| Gain Minimum | 0.5 |
| Bandwidth Range | 3 | 22 |
| VSWR | 1.8 |
| Pb Free | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the APARM2508S-SG3L5
