AQV252G
Relay, 1 A, PhotoMOS, PCB, 0.346 in. L x 0.252 in. W x 0.154 in. H, -40 C | Panasonic Electronic Components AQV252G
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AQV252G by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

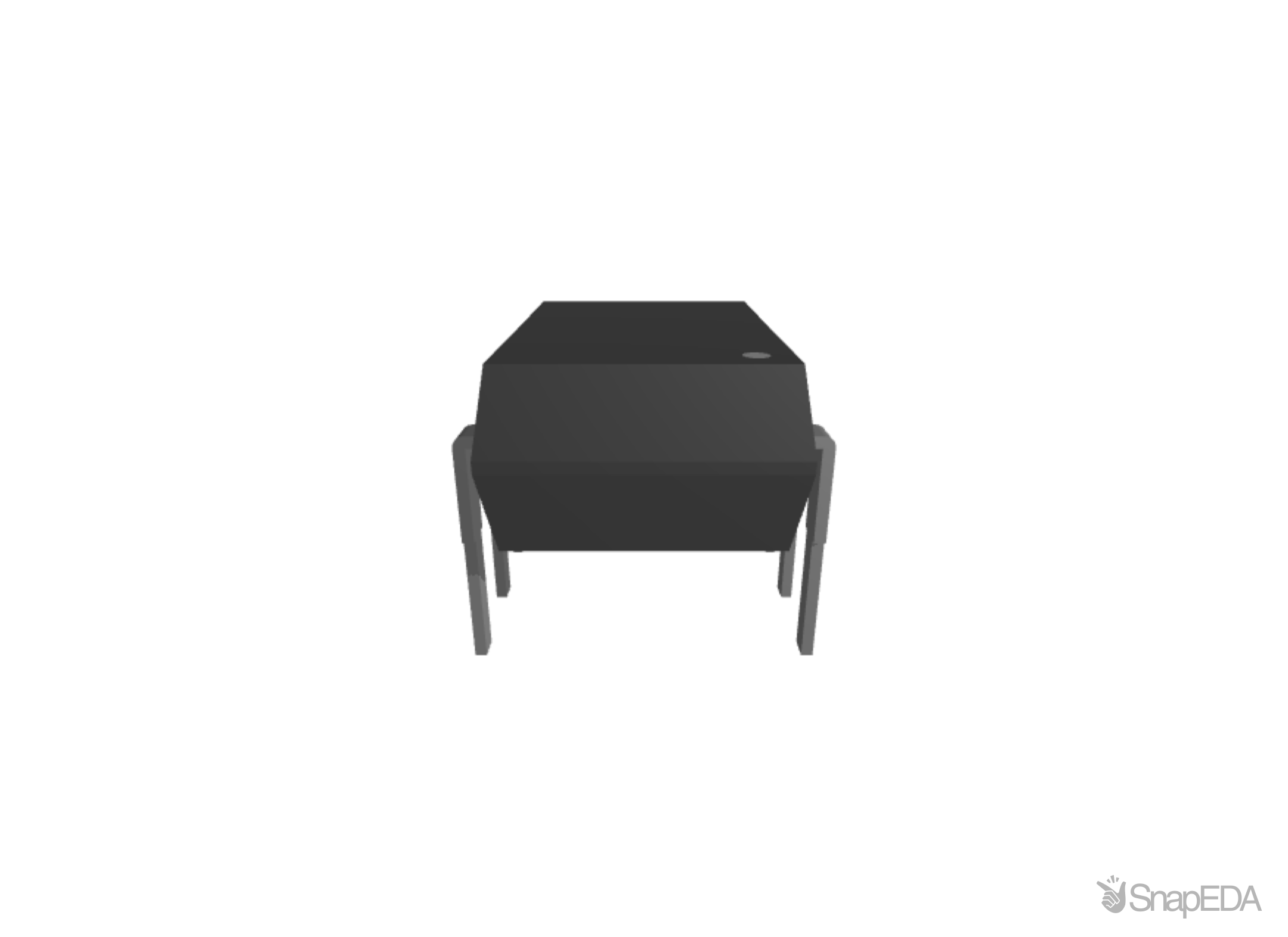

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AQV252G
| Part Name | AQV252G |
| Manufacturer | Panasonic |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Load Voltage (V) | 50 V ac/dc |
| Maximum Load Current (A) | 3 A |
| Output Device | Photo MOSFET |
| Mounting Type | PCB Mount |
| Series | AQV |
| Contact Configuration | SPST |
| Range | PhotoMOS |
| Switching Type | MOSFET Switching |
