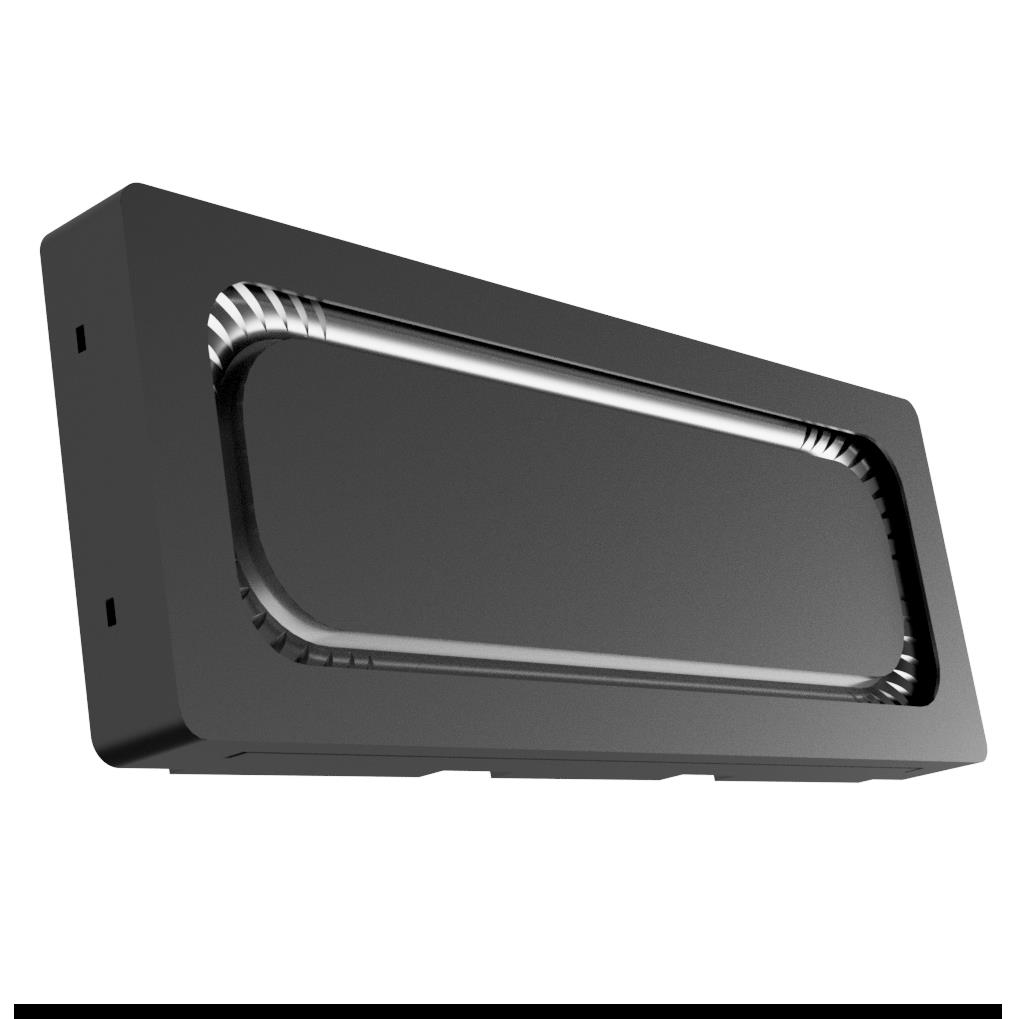

AS02508MS
25X9MM SPEAKER 550HZ 90DB 8OHM 1W MYLAR SOLDER PADS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AS02508MS by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

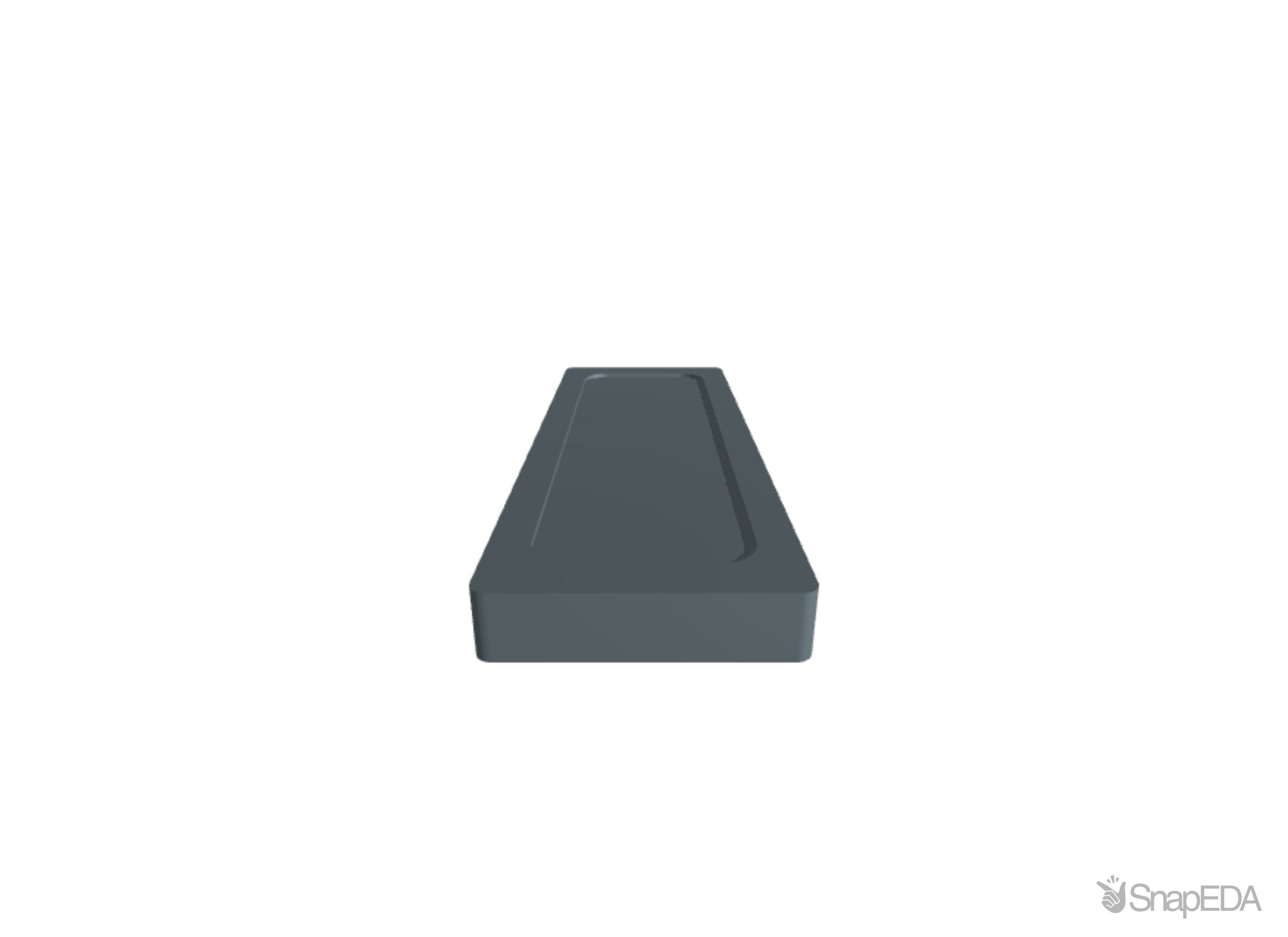

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AS02508MS
| Part Name | AS02508MS |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 90.0 |
| Freq min in Khz | 0.55 |
| Impedance in ohms | 8.0 |
| Device Type | Speaker |
| Rated Input Power | 1.0 |
| Magnet Material | NdFeB |
| Lead Time | 115 |
| Resonant Frequency Khz | 0.55 |
| MULT | 80 |
| Status | Active |
| SPQ | 80 |
| Weight in grams | 1.5 |
| Tolerance percentage | 15.0 |
| REACH | Yes |
| SPU | TRAY |
| RoHS | Yes |
| Additional Features | solder pads |
| Freq max in Khz | 5.0 |
| Country Code | CN |
| Diaphragm Material | Mylar |
| Tolerance - dB | 3 |
| Operating Temp. | -20 to 60 |
| Temp. Grade | Standard |
| HTS Code | 8518.29.8000 |
| MOQ | 1600 |
| Input Power Max | 1.2 |
| Dimmensions in mm. | 25 x 9 x 3 |
| Product Link | https://puiaudio.com/product/speakers-and-receivers/as02508ms |
| Shape | Square |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
