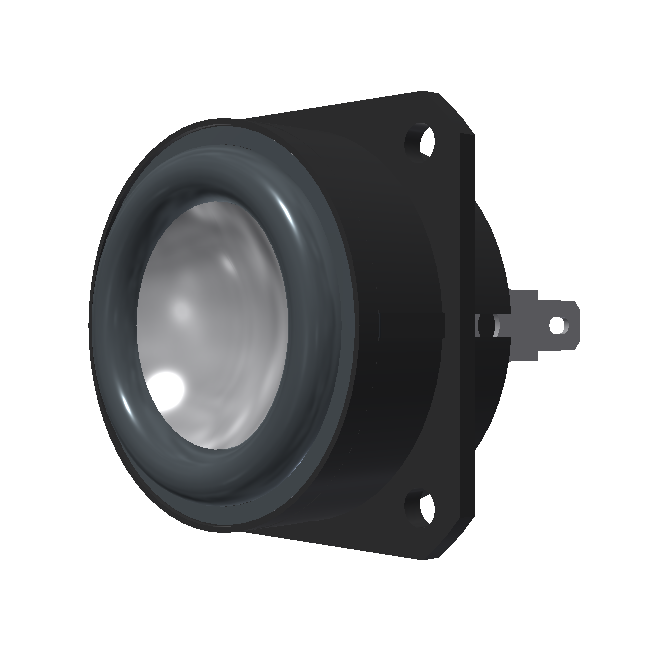

AS03908AS-R
SPEAKER 5W 8OHM 78DB 250HZ
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AS03908AS-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
2D Model
The 2D model for this
part is not available

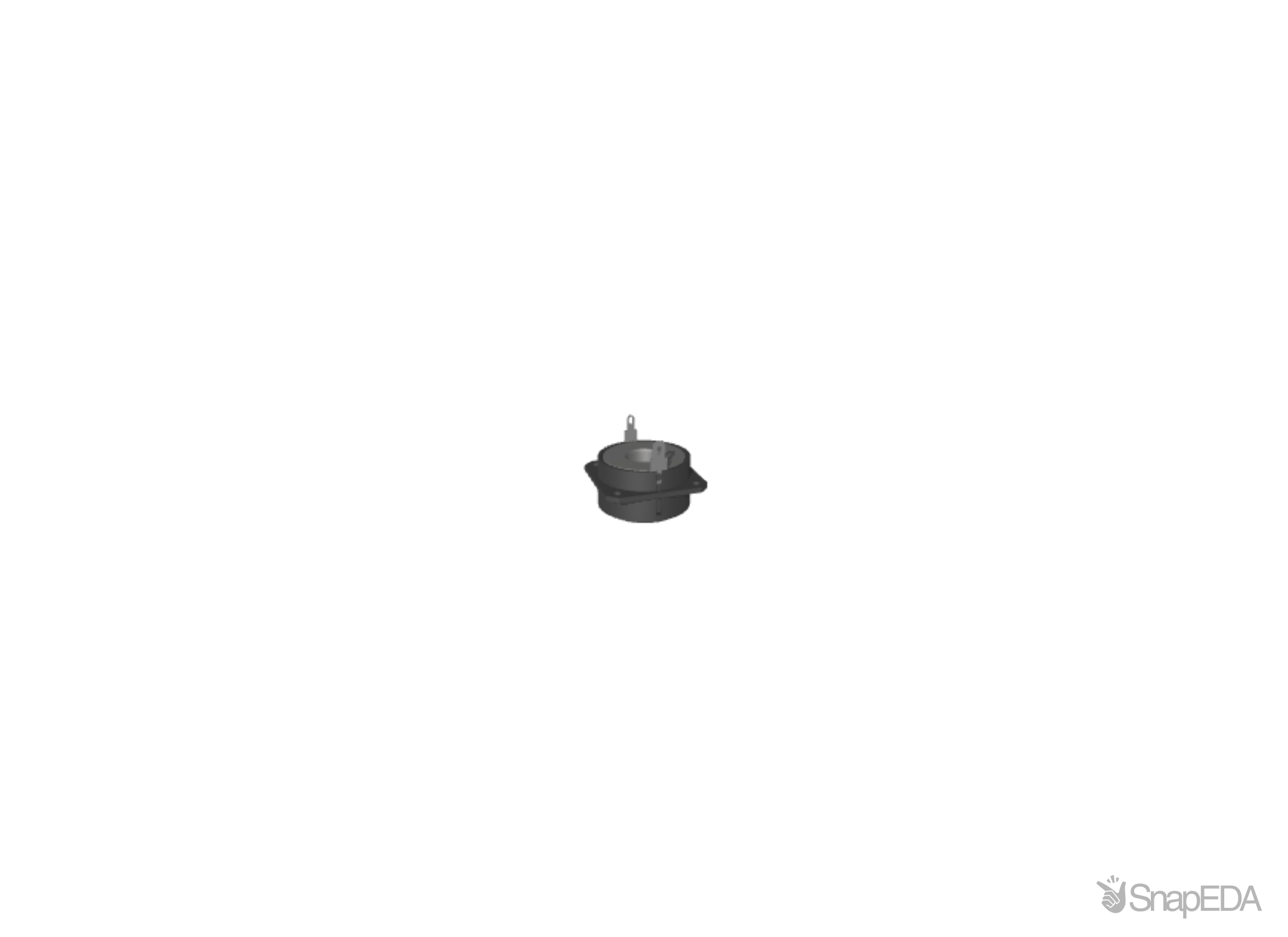

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AS03908AS-R
| Part Name | AS03908AS-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 78.0 |
| Freq min in Khz | 0.13 |
| Impedance in ohms | 8.0 |
| Device Type | Speaker |
| Rated Input Power | 5.0 |
| Magnet Material | NdFeB |
| Lead Time | 120 |
| Resonant Frequency Khz | 0.25 |
| Status | Obsolete |
| Weight in grams | 48.5 |
| Tolerance percentage | 15.0 |
| Shape | Square |
| Temp. Grade | Standard |
| Freq max in Khz | 20.0 |
| Diaphragm Material | Aluminum |
| Tolerance - dB | 3 |
| Operating Temp. | -25 to 60 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Input Power Max | 8.0 |
| Dimmensions in mm. | 39 x 39 x 29 |
| Product Link | https://puiaudio.com/product/speakers-and-receivers/as03908as-r |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the AS03908AS-R
