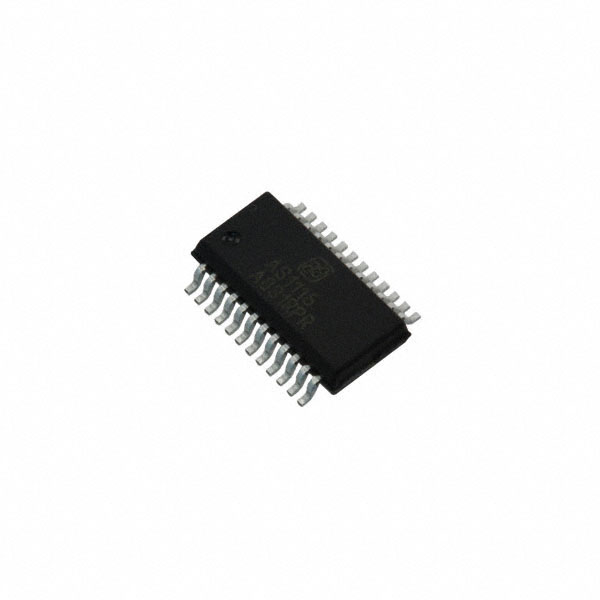

AS1115-BSST
IC DRVR 64 LED 7SEG 8 DGT 24QSOP
Availability: In Stock
Package Type: QSOP-24
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AS1115-BSST by ams and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

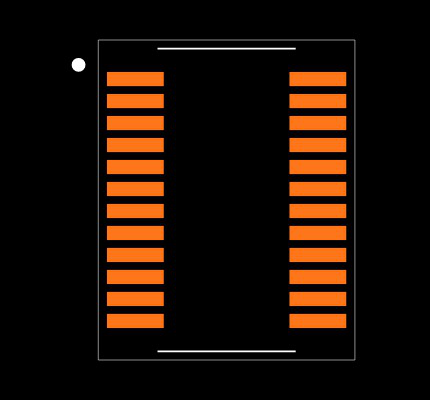

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AS1115-BSST
| Part Name | AS1115-BSST |
| Manufacturer | ams |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Display Type | LED |
| Maximum Supply Current (A) | 0.6 (mA) |
| Number Of Segments | 8 |
| Package Type | QSOP |
| Supply Voltage (V) | 2 → 30 V |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Pins | 24 |
| Maximum Operating Temperature | +85 (°C) |
