AS4C16M16SA-6BIN
SDRAM Memory IC 256Mb (16M x 16) Parallel 166 MHz 5 ns 54-TFBGA (8x8)
Availability: Out of Stock
Package Type: TFBGA-54
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AS4C16M16SA-6BIN by Alliance Hose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

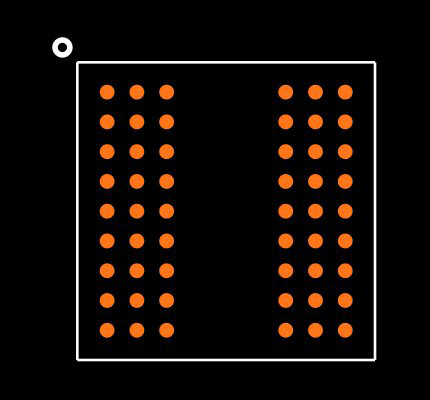

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AS4C16M16SA-6BIN
| Part Name | AS4C16M16SA-6BIN |
| Manufacturer | Alliance Memory, |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Sdram Class | DDR |
| Number Of Words | 16 M |
| Data Bus Width | 16 (bit) |
| Dimensions | 8.0 x 8.0 x 1.2 (mm) |
| Maximum Operating Supply Voltage (V) | 3.6 V |
| Organisation | 16M x 16 |
| Minimum Operating Supply Voltage (V) | 3 V |
| Number Of Bits Per Word | 16 (bit) |
| Height | 1.2 (mm) |
| Memory Size | 256 (Mbit) |
| Width | 8.0 (mm) |
| Length | 8.0 (mm) |
| Address Bus Width | 13 (bit) |
| Package Type | TFBGA |
| Minimum Operating Temperature | -40 °C |
| Data Rate | 166 (MHz) |
| Maximum Random Access Time | 5 (ns) |
| Mounting Type | Surface Mount |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 54 |
