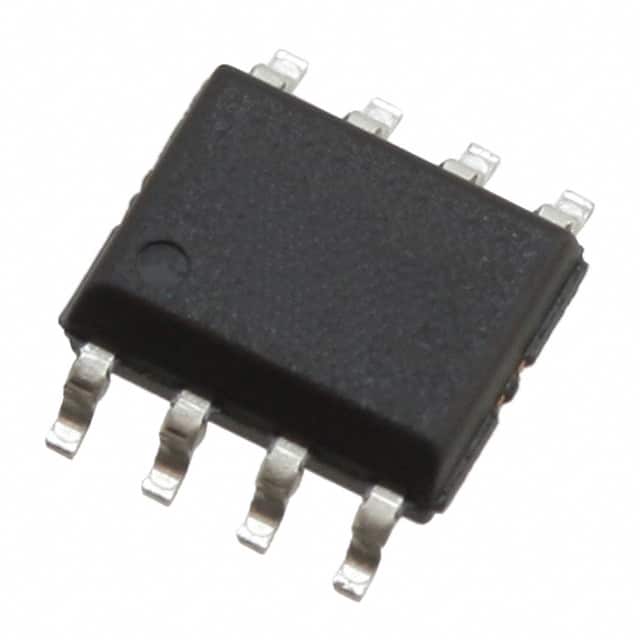

AS5601-ASOM
Board Mount Hall Effect / Magnetic Sensors 12-Bit Rotary Sensor Incr Quad 8 to 2048
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AS5601-ASOM by ams and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AS5601-ASOM
| Part Name | AS5601-ASOM |
| Manufacturer | ams OSRAM |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Supply Voltage (V) | 3.6 V, 5.5 V |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 3 V, 4.5 V |
| Package Type | SOIC |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 8 |
| Sensor Type | Hall Effect Sensors |
