ASE-25.000MHZ-LR-T
25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ASE-25.000MHZ-LR-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

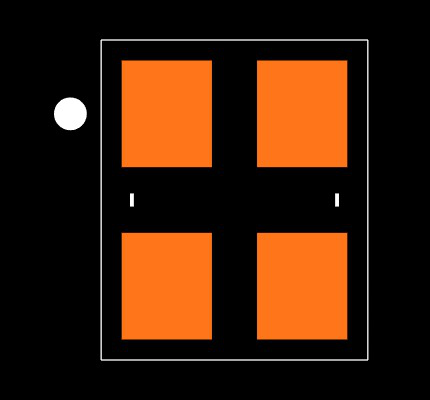

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ASE-25.000MHZ-LR-T
| Part Name | ASE-25.000MHZ-LR-T |
| Manufacturer | Abracon LLC |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.2 x 2.5 x 1.2 (mm) |
| Mounting Type | Surface Mount |
| Output Level | CMOS |
| Oscillator Type | XO |
| Height | 1.2 (mm) |
| Frequency Stability | ±25 (ppm) |
| Width | 2.5 (mm) |
| Length | 3.2 (mm) |
| Package Type | SMD |
| Output Frequency | 25 (MHz) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | 85 (°C) |
No issues have been reported for the ASE-25.000MHZ-LR-T
