ASP-130367-01
SnapVerified
40 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Availability: Out of Stock
Country of Origin: Malaysia

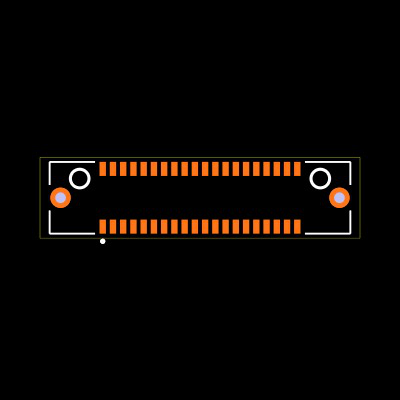

CAD Models: Symbol and Footprint
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ASP-130367-01 by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ASP-130367-01
| Part Name | ASP-130367-01 |
| Manufacturer | Samtec Inc. |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | ASP |
| Country of Origin | Malaysia |
| Packaging | Tray |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Series | ASP |
| Body Orientation | Straight |
| Number Of Rows | 2 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 0.8 (mm) |
| Number Of Contacts | 40 |
No issues have been reported for the ASP-130367-01
If you experienced any issues with the symbol or footprint, please report it.
