ASP-184330-01
SnapVerified
ASP-184330-01 VITA 57.4 FMC+ Samtec SEARAY™ HSPC Mezzanine Terminal
Availability: Out of Stock
Country of Origin: United States
CAD Models: Symbol, Footprint, 3D Model
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ASP-184330-01 by Samtec Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

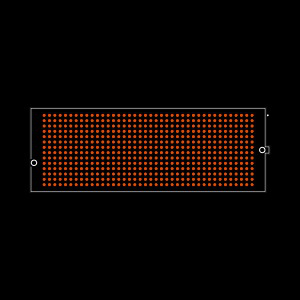

Footprint
No web preview
This Footprint is Available for

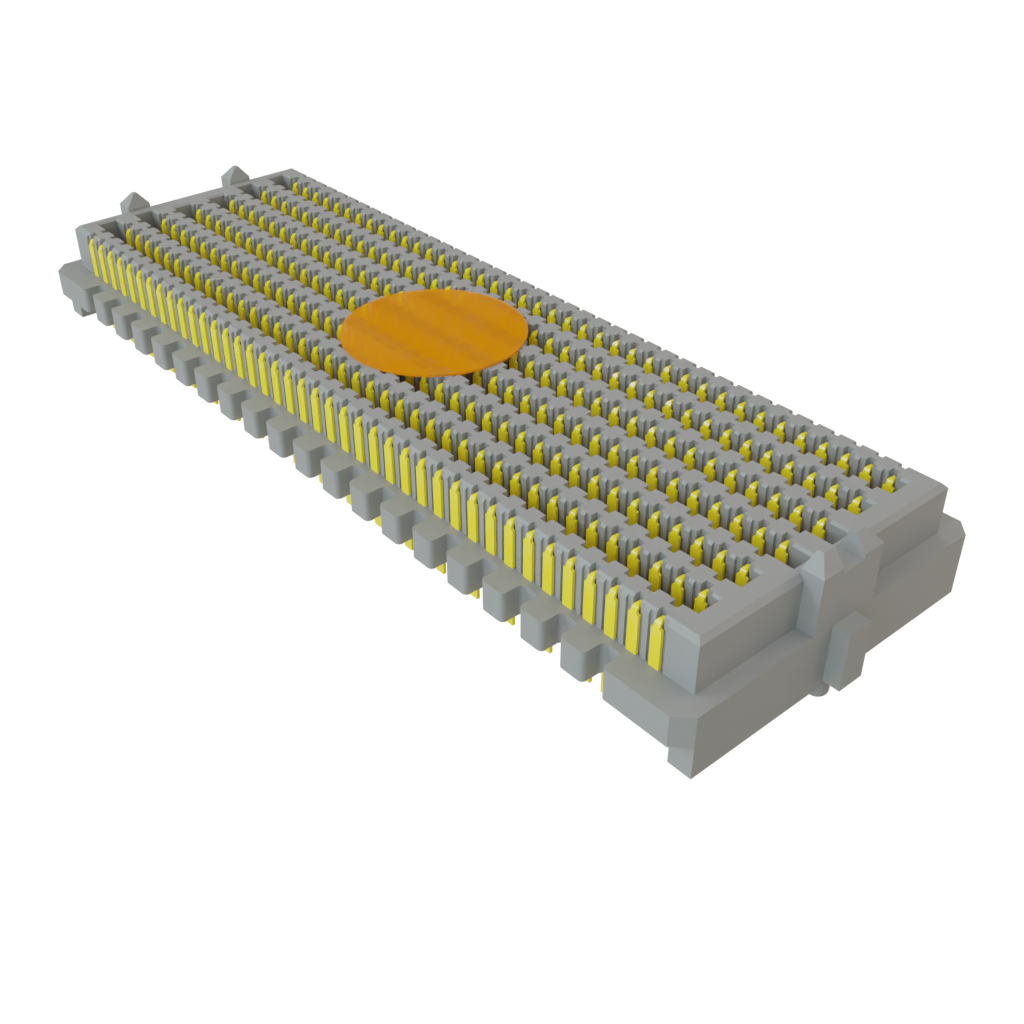

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ASP-184330-01
| Part Name | ASP-184330-01 |
| Manufacturer | Samtec Inc. |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | ASP |
| Country of Origin | United States |
| Packaging | SEAX Packaging |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Series | ASP |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Number Of Rows | 14 |
| Contact Plating | Gold over Nickel |
| Pitch | 1.27 (mm) |
| Number Of Contacts | 560 |
| Type | Board to Board |
| Contact Material | Copper |
