ASPI-7318-R33M-T
330 nH Shielded Drum Core, Wirewound Inductor 20 A 3.9mOhm Max Nonstandard
Availability: In Stock
Package Type: NONSTANDARD
CAD Models: Symbol, Footprint, 3D Model
Get this part
We found more resources!
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ASPI-7318-R33M-T by Abracon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

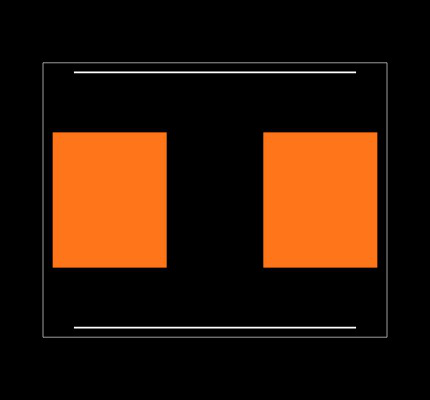

Footprint
No web preview
This Footprint is Available for

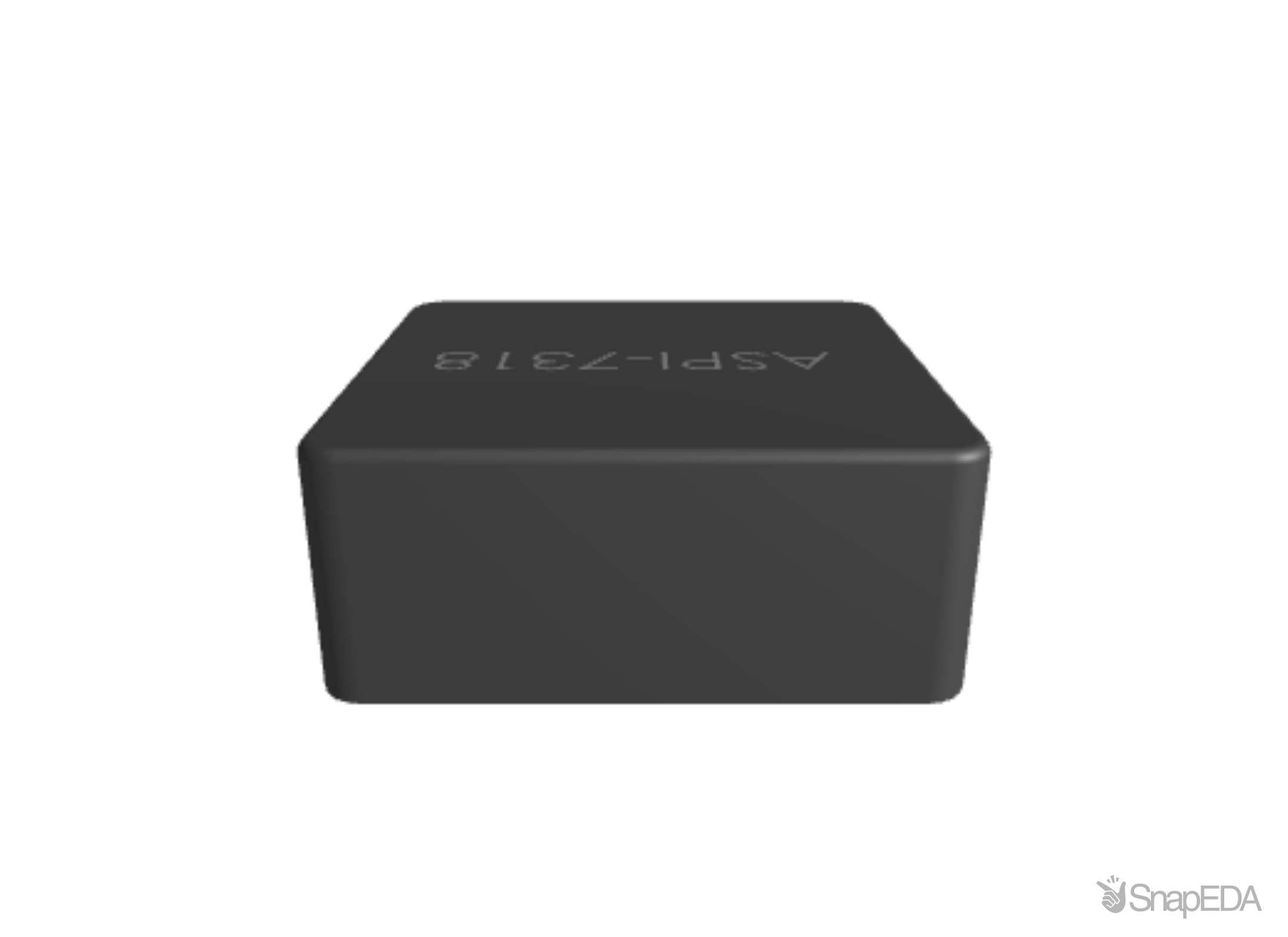

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ASPI-7318-R33M-T
| Part Name | ASPI-7318-R33M-T |
| Manufacturer | Abracon LLC |
| Application Note | https://abracon.com/uploads/resources/Abracon-Inductor-Reference-Guide.pdf |
| RoHS | True |
| Product Link | https://abracon.com/uploads/resources/Abracon-Inductor-Reference-Guide.pdf |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Current (A) | 20 (A) |
| Package Case | SMD |
| Length | 7.3 (mm) |
| Depth | 3 (mm) |
| Inductance | 330 nH |
