AST-03008MR-R
30MM SPEAKER 1400HZ 72DB 8OHM 0.15W MYLAR THRUHOLE W/ HOUSING
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AST-03008MR-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for

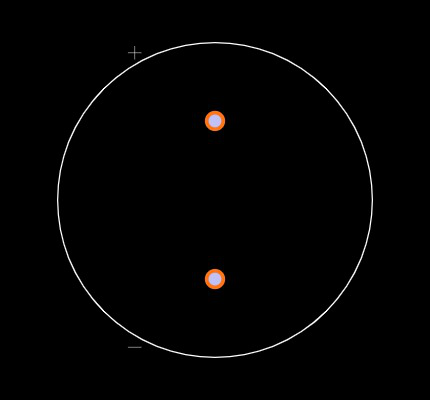

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AST-03008MR-R
| Part Name | AST-03008MR-R |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 72.0 |
| Freq min in Khz | 0.5 |
| Impedance in ohms | 8.0 |
| Device Type | Speaker Transducer |
| Rated Input Power | 0.15 |
| Magnet Material | NdFeB |
| Lead Time | 115 |
| Resonant Frequency Khz | 1.4 |
| MULT | 50 |
| Status | Active |
| SPQ | 50 |
| Weight in grams | 10.0 |
| Tolerance percentage | 20.0 |
| REACH | Yes |
| SPU | TRAY |
| RoHS | Yes |
| Freq max in Khz | 20.0 |
| Country Code | CN |
| Diaphragm Material | Mylar |
| Tolerance - dB | 3 |
| Operating Temp. | -40 to 70 |
| Temp. Grade | Standard |
| HTS Code | 8518.21.0000 |
| MOQ | 50 |
| Input Power Max | 0.2 |
| Dimmensions in mm. | 29.85 x 29.85 x 18 |
| Product Link | https://www.puiaudio.com/products/ast-03008mr-r |
| Shape | Round |
