ASX04004-R
40X40MM EXCITER 450HZ DB 4OHM 5W TERMINAL
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ASX04004-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

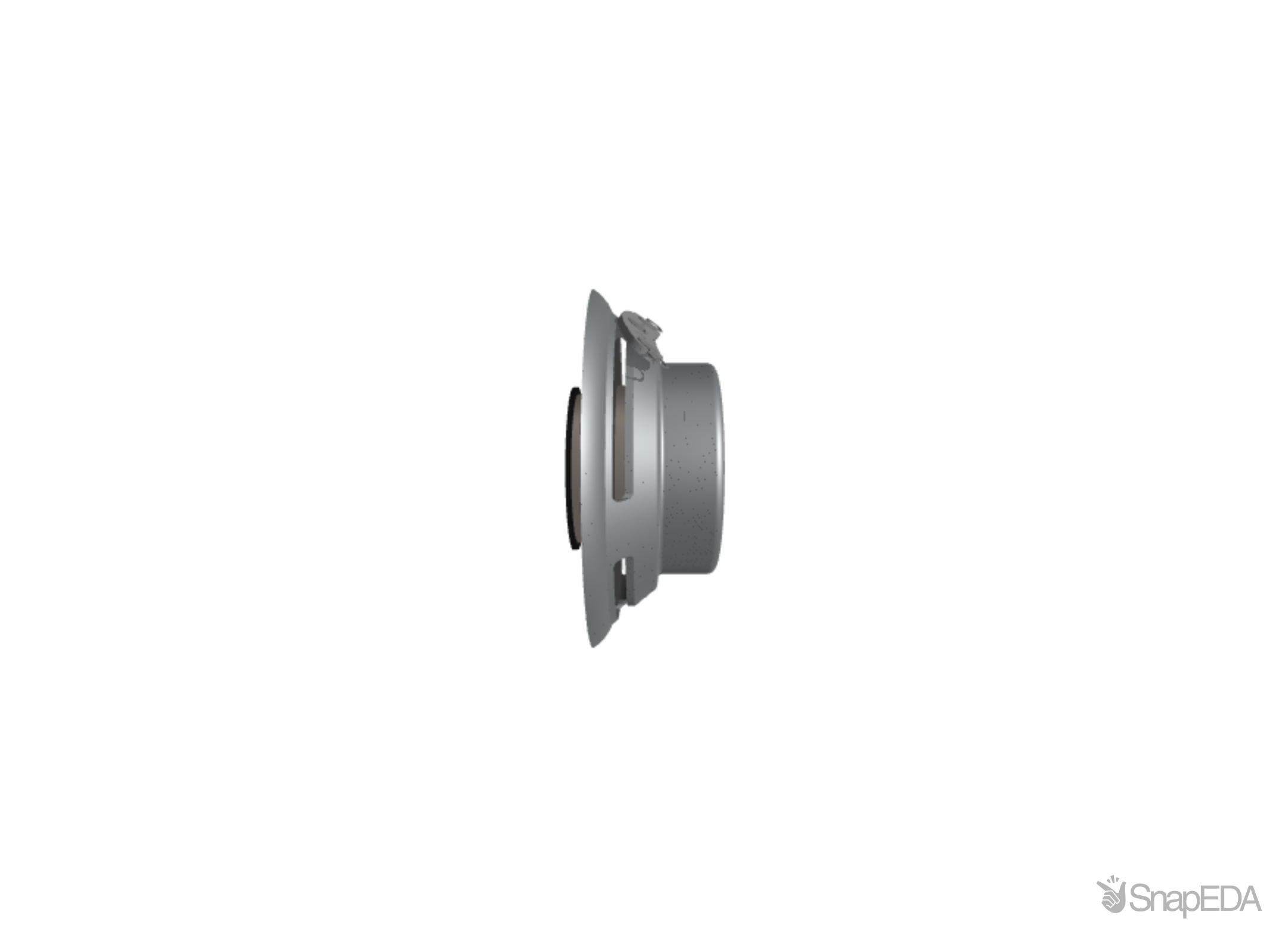

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ASX04004-R
| Part Name | ASX04004-R |
| Manufacturer | PUI Audio |
| Status | Active |
| HTS Code | 8518.29.8001 |
| Tolerance percentage | 15.0 |
| Freq min in Khz | 0.45 |
| Max Input Power | 5.0 |
| SPQ | 40 |
| MOQ | 500 |
| Freq max in Khz | 10.5 |
| REACH | Yes |
| SPU | TRAY |
| Country Code | CN |
| Lead Time | 145 |
| Dimmensions in mm. | 40 x 40 x 16 |
| Rated Input Power | 3.0 |
| MULT | 40 |
| Magnet Material | NdFeB |
| Product Link | https://puiaudio.com/product/exciters/asx04004-r |
| Operating Temp. | -10 to 60 |
| Additional Features | terminal |
| Weight in grams | 28.0 |
| RoHS | Yes |
