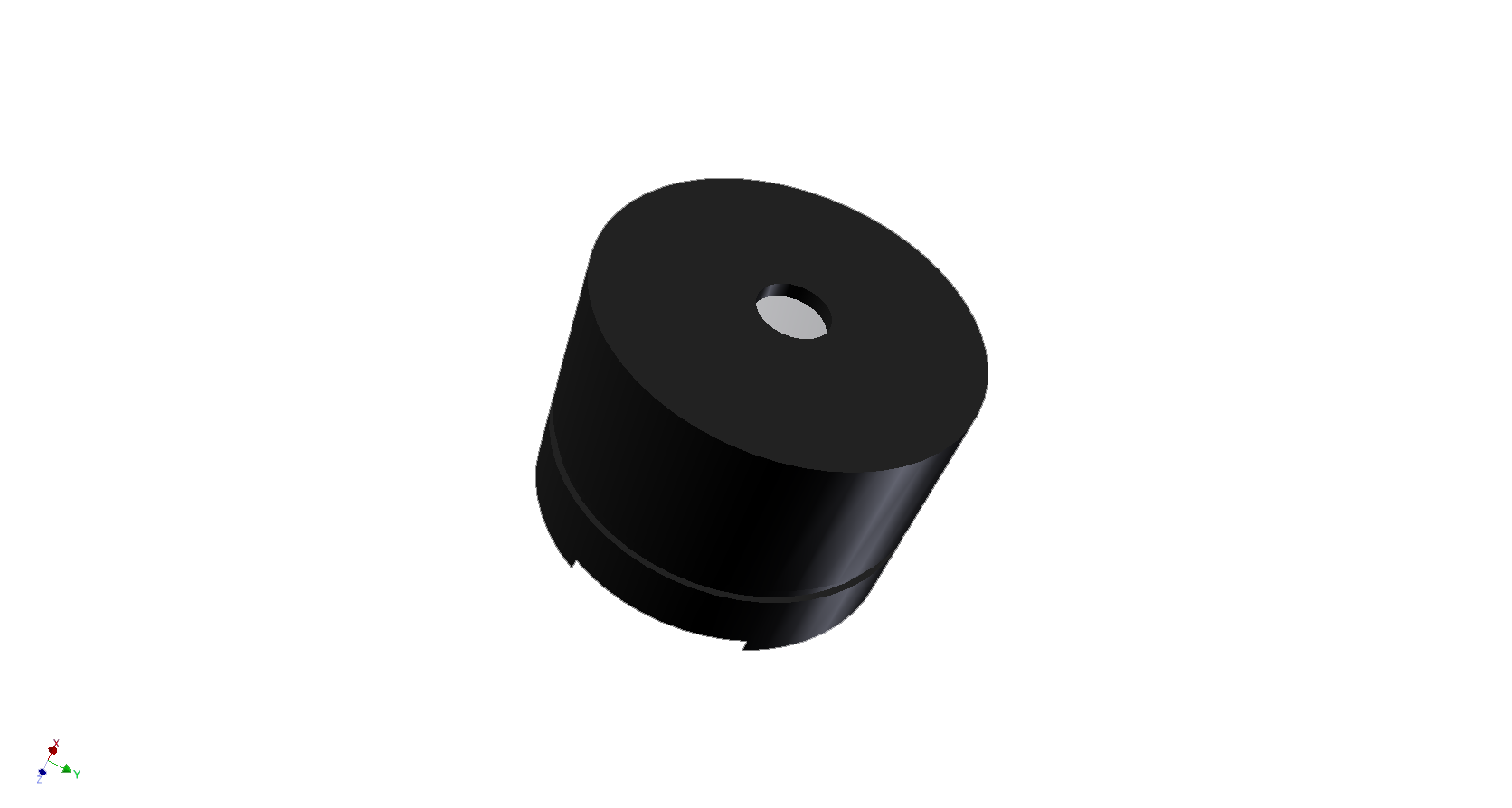

AT-1220-TT-9-R

Name: AT-1220-TT-9-R
Brand: PUI Audio

12MM TRANSDUCER 2048HZ 85DB 42OHM 3.5V 35MA MAGNETIC TOP FIRING THRUHOLE

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the AT-1220-TT-9-R by PUI Audio and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

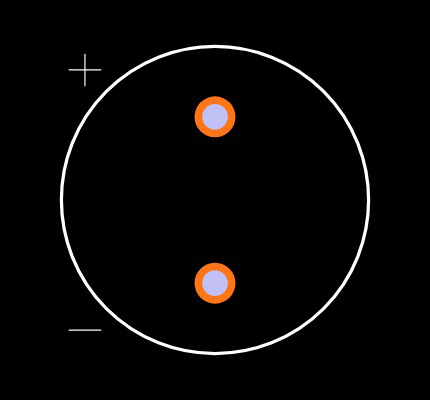

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

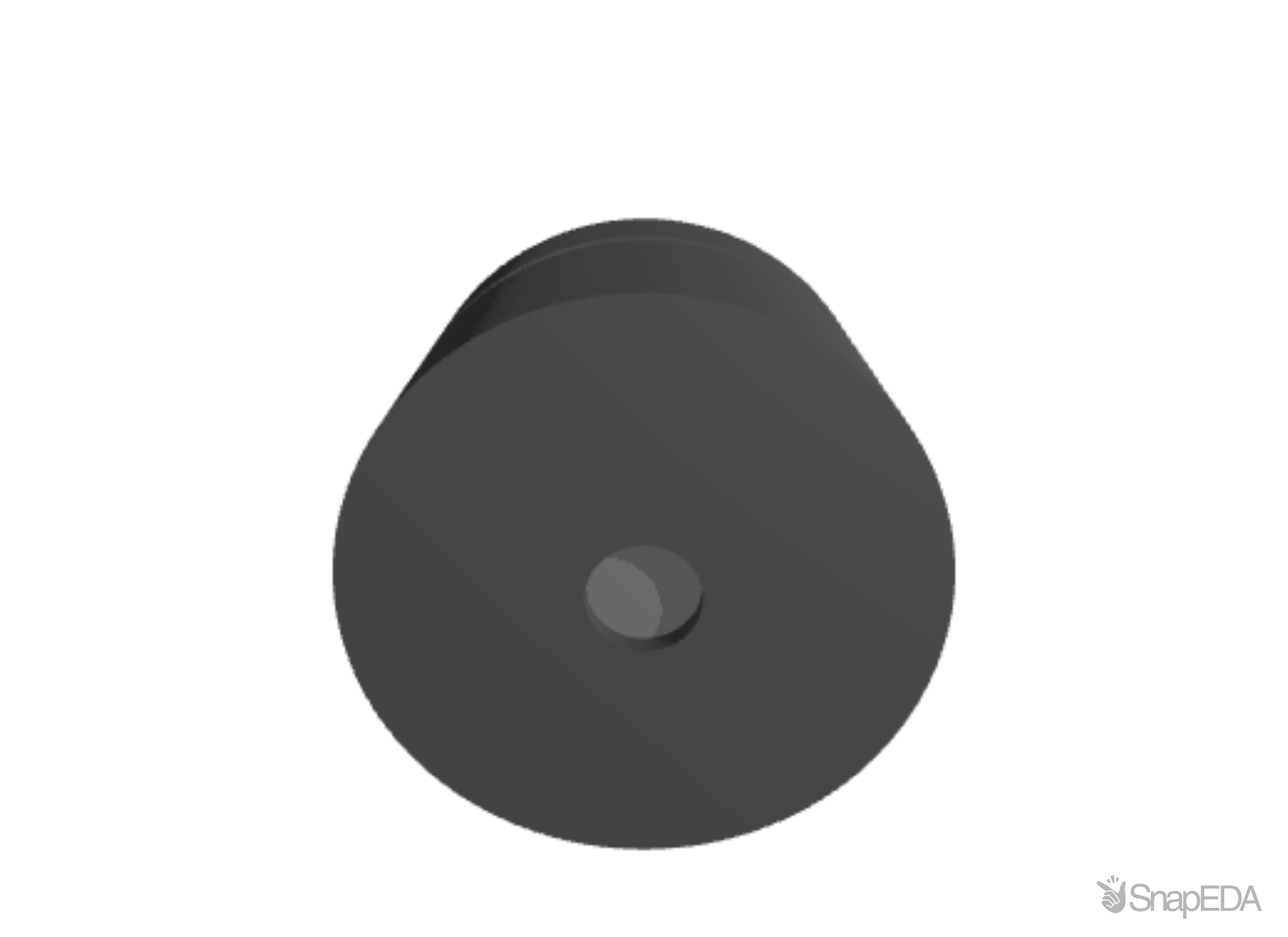

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the AT-1220-TT-9-R

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the AT-1220-TT-9-R

Part Name	AT-1220-TT-9-R
Manufacturer	PUI Audio
Rated Voltage (V)	3.5
Device Type	Electro-Mechanical
Lead Time	130
Resonant Frequency Khz	2.048
MULT	100
Coil Resistance	42.0
Status	Active
Minimum SPL at 10 cm	85
SPQ	100
Weight in grams	2.0
REACH	Yes
SPU	TRAY
Tolerance - Ohms	6
Tolerance Khz	0.5
Additional Features	top firing, thru-hole
Rated Current Max (A)	35.0
Terminal Material	Au Plated Brass
Country Code	CN
Operating Temp.	-20 to 70
RoHS	Yes
HTS Code	8531.80.9041
Operating Voltage Min (V)	3.0
Operating Voltage Max (V)	5.0
MOQ	100
Shape	Round
Dimmensions in mm.	12 x 12 x 14
Product Link	https://www.puiaudio.com/products/at-1220-tt-9-r
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the AT-1220-TT-9-R by PUI Audio.
